Estimation of tree height using GEDI dataset - Feed forward networks - 2025

'''
Packages

conda install pytorch torchvision torchaudio cudatoolkit=10.2 -c pytorch
conda install -c anaconda scikit-learn
conda install pandas

NOTE: if you would like to use pytorch with GPU support, run the following command:
conda install -c pytorch -c nvidia pytorch torchvision torchaudio pytorch-cuda=12.1
'''

import torch
import torch.nn as nn
import numpy as np
import matplotlib.pyplot as plt
import scipy
import pandas as pd
from sklearn.metrics import r2_score
from sklearn.model_selection import train_test_split
from scipy import stats
from scipy.stats import pearsonr


"""
Fix random seeds.
"""
seed=31
torch.manual_seed(seed)
torch.cuda.manual_seed_all(seed)
np.random.seed(seed)

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print('Using device:', device)

Using device: cuda

predictors = pd.read_csv("../tree_height/txt/eu_x_y_height_predictors_select.txt", sep=" ",  index_col=False)
pd.set_option('display.max_columns',None)
# change column name
predictors = predictors.rename({'dev-magnitude':'devmagnitude'} , axis='columns')
predictors.head(10)

	ID	X	Y	h	BLDFIE_WeigAver	CECSOL_WeigAver	CHELSA_bio18	CHELSA_bio4	convergence	cti	devmagnitude	eastness	elev	forestheight	glad_ard_SVVI_max	glad_ard_SVVI_med	glad_ard_SVVI_min	northness	ORCDRC_WeigAver	outlet_dist_dw_basin	SBIO3_Isothermality_5_15cm	SBIO4_Temperature_Seasonality_5_15cm	treecover
0	1	6.050001	49.727499	3139.00	1540	13	2113	5893	-10.486560	-238043120	1.158417	0.069094	353.983124	23	276.871094	46.444092	347.665405	0.042500	9	780403	19.798992	440.672211	85
1	2	6.050002	49.922155	1454.75	1491	12	1993	5912	33.274361	-208915344	-1.755341	0.269112	267.511688	19	-49.526367	19.552734	-130.541748	0.182780	16	772777	20.889412	457.756195	85
2	3	6.050002	48.602377	853.50	1521	17	2124	5983	0.045293	-137479792	1.908780	-0.016055	389.751160	21	93.257324	50.743652	384.522461	0.036253	14	898820	20.695877	481.879700	62
3	4	6.050009	48.151979	3141.00	1526	16	2569	6130	-33.654274	-267223072	0.965787	0.067767	380.207703	27	542.401367	202.264160	386.156738	0.005139	15	831824	19.375000	479.410278	85
4	5	6.050010	49.588410	2065.25	1547	14	2108	5923	27.493824	-107809368	-0.162624	0.014065	308.042786	25	136.048340	146.835205	198.127441	0.028847	17	796962	18.777500	457.880066	85
5	6	6.050014	48.608456	1246.50	1515	19	2124	6010	-1.602039	17384282	1.447979	-0.018912	364.527100	18	221.339844	247.387207	480.387939	0.042747	14	897945	19.398880	474.331329	62
6	7	6.050016	48.571401	2938.75	1520	19	2169	6147	27.856503	-66516432	-1.073956	0.002280	254.679596	19	125.250488	87.865234	160.696777	0.037254	11	908426	20.170450	476.414520	96
7	8	6.050019	49.921613	3294.75	1490	12	1995	5912	22.102139	-297770784	-1.402633	0.309765	294.927765	26	-86.729492	-145.584229	-190.062988	0.222435	15	772784	20.855963	457.195404	86
8	9	6.050020	48.822645	1623.50	1554	18	1973	6138	18.496584	-25336536	-0.800016	0.010370	240.493759	22	-51.470703	-245.886719	172.074707	0.004428	8	839132	21.812290	496.231110	64
9	10	6.050024	49.847522	1400.00	1521	15	2187	5886	-5.660453	-278652608	1.477951	-0.068720	376.671143	12	277.297363	273.141846	-138.895996	0.098817	13	768873	21.137711	466.976685	70

# Filter heights below 7000
mask = predictors['h'] < 7000
predictors_under7k = predictors.loc[mask]

# Sample up to 100k rows (no replacement)
n = min(100000, len(predictors_under7k))
predictors_sel = predictors_under7k.sample(n, replace=False, random_state=0)

# Add height in meters at column index 4
predictors_sel.insert(4, 'hm', predictors_sel['h'] / 100)

# Row count
length_after = len(predictors_sel)
print('row count: {}'.format(length_after))

# Quick preview
head_preview = predictors_sel.head(10)

row count: 100000

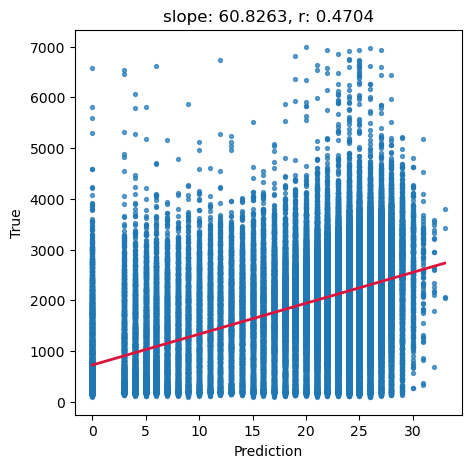

# Ground truth and predictions
y_true = predictors_sel['h']
y_pred = predictors_sel['forestheight']

# Simple linear regression (y_true ~ y_pred)
slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_true)

# Scatter and annotation
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
ax.scatter(y_pred, y_true, s=8, alpha=0.7)
ax.set_xlabel('Prediction')
ax.set_ylabel('True')
ax.set_title('slope: {:.4f}, r: {:.4f}'.format(slope, r_value))

# Optional: add fitted line
xline = np.linspace(y_pred.min(), y_pred.max(), 100)
ax.plot(xline, intercept + slope * xline, color='crimson', lw=2)

plt.show()

# Target variable (meters) as NumPy array
tree_height_orig = predictors_sel['hm'].to_numpy()

# Feature matrix without ID/targets/pred column
data = predictors_sel.drop(columns=['ID', 'h', 'hm', 'forestheight'], axis=1)

# Grid size close to square
n_plots_x = int(np.ceil(np.sqrt(data.shape[1])))
n_plots_y = int(np.floor(np.sqrt(data.shape[1])))
print('data.shape[1]: {}, n_plots_x: {}, n_plots_y: {}'.format(data.shape[1], n_plots_x, n_plots_y))

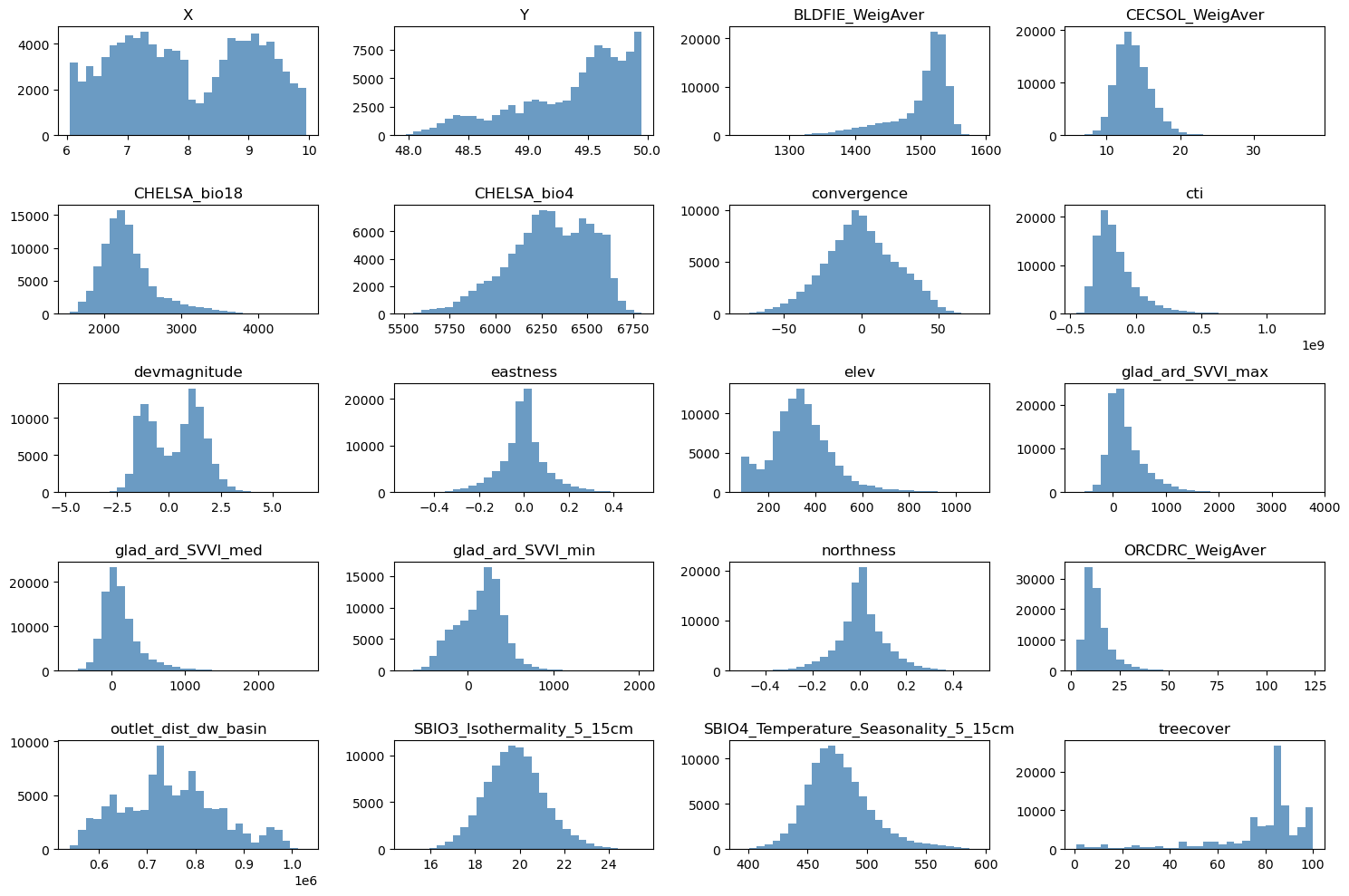

# Subplots and flat axes
fig, ax = plt.subplots(n_plots_x, n_plots_y, figsize=(15, 10), dpi=100, facecolor='w', edgecolor='k')
ax = np.array(ax).ravel()

# Hist per feature (normalized)
for idx in range(data.shape[1]):
    ax[idx].hist(data.iloc[:, idx].ravel(), bins=30, color='steelblue', alpha=0.8)
    ax[idx].set_title(data.columns[idx])

# Tight layout
fig.tight_layout()

data.shape[1]: 20, n_plots_x: 5, n_plots_y: 4

/tmp/tmp.8i6qKi0XR7/ipykernel_1275115/392271650.py:12: FutureWarning: Series.ravel is deprecated. The underlying array is already 1D, so ravel is not necessary.  Use `to_numpy()` for conversion to a numpy array instead.
  ax[idx].hist(data.iloc[:, idx].ravel(), bins=30, color='steelblue', alpha=0.8)

import numpy as np
import matplotlib.pyplot as plt
from sklearn.preprocessing import QuantileTransformer, MinMaxScaler

# Suppose tree_height_raw is your original 1D np.array
# Keep a copy for plotting the "before" distribution
x0 = tree_height_orig.copy()

# 1) Fit and apply QuantileTransformer (to normal)
qt = QuantileTransformer(n_quantiles=500, output_distribution="normal", random_state=0)
x1 = qt.fit_transform(x0.reshape(-1, 1))  # shape (n, 1)

# 2) Fit and apply MinMaxScaler to [-1, 1]
scaler_tree = MinMaxScaler(feature_range=(-1, 1))
x2 = scaler_tree.fit_transform(x1)  # shape (n, 1)

# 3) Divide by 99th percentile (elementwise scaling)
q99 = np.quantile(x2.squeeze(), 0.99)
x3 = (x2.squeeze() / q99)  # shape (n,)

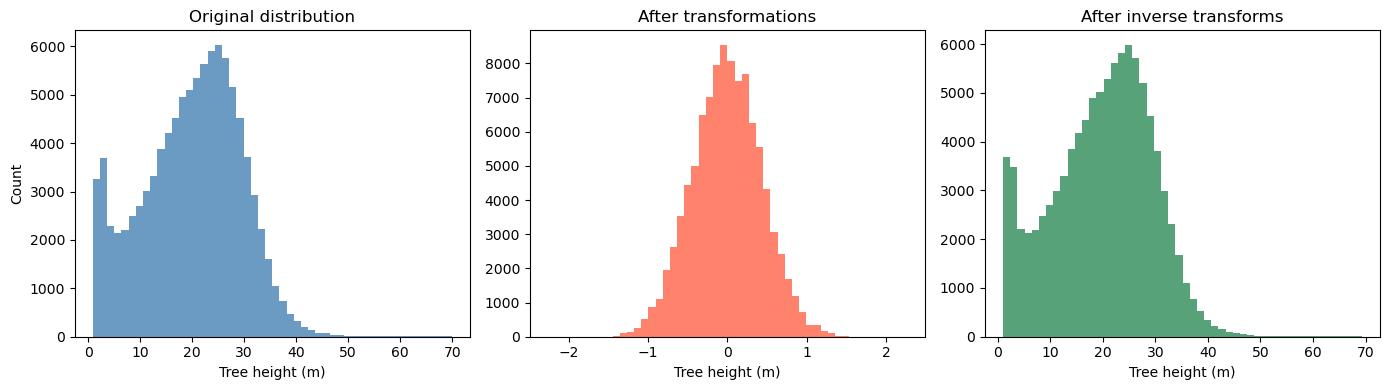

# Plot 1: before any transformation
plt.figure(figsize=(14,4))
plt.subplot(1,3,1)
plt.hist(x0, bins=50, color="steelblue", alpha=0.8)
plt.title("Original distribution")
plt.xlabel("Tree height (m)")
plt.ylabel("Count")

# Plot 2: after all transformations (normalized)
plt.subplot(1,3,2)
plt.hist(x3, bins=50, color="tomato", alpha=0.8)
plt.title("After transformations")
plt.xlabel("Tree height (m)")

# ---- Inversion pipeline ----
# Inverse of step 3: multiply by q99, then reshape for scaler.inverse_transform
x2_rec = (x3 * q99).reshape(-1, 1)

# Inverse of step 2: MinMaxScaler inverse
x1_rec = scaler_tree.inverse_transform(x2_rec)  # shape (n, 1)

# Inverse of step 1: QuantileTransformer inverse
x0_rec = qt.inverse_transform(x1_rec).squeeze()  # shape (n,)

# Plot 3: after inverting all transformations
plt.subplot(1,3,3)
plt.hist(x0_rec, bins=50, color="seagreen", alpha=0.8)
plt.title("After inverse transforms")
plt.xlabel("Tree height (m)")
plt.tight_layout()
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from sklearn.preprocessing import QuantileTransformer, MinMaxScaler

def inverse_normalization(transformed_data, qt, scaler_tree, q99):
    """
    Inverse the normalization operations.

    Args:
        transformed_data (ndarray): Transformed data.
        qt (QuantileTransformer): QuantileTransformer instance used for transformation.
        scaler_tree (MinMaxScaler): MinMaxScaler instance used for transformation.
        q99 (float): Value at the 99th percentile of the original data.

    Returns:
        ndarray: Inverse transformed data.
    """
    # Inverse of step 3: multiply by q99, then reshape for scaler.inverse_transform
    x2_rec = (transformed_data * q99).reshape(-1, 1)

    # Inverse of step 2: MinMaxScaler inverse
    x1_rec = scaler_tree.inverse_transform(x2_rec)  # shape (n, 1)

    # Inverse of step 1: QuantileTransformer inverse
    x0_rec = qt.inverse_transform(x1_rec).squeeze()  # shape (n,)

    return x0_rec

# Example usage
# qt = QuantileTransformer(n_quantiles=500, output_distribution="normal", random_state=0)
# scaler_tree = MinMaxScaler(feature_range=(-1, 1))
# q99 = np.quantile(tree_height, 0.99)

# transformed_data = qt.fit_transform(tree_height.reshape(-1, 1))
# x0_rec = inverse_normalization(transformed_data, qt, scaler_tree, q99)

# # Plot the inverse transformed data
# plt.hist(x0_rec, bins=50, color="seagreen", alpha=0.8)
# plt.title("After inverse transforms")
# plt.xlabel("Tree height (m)")
# plt.show()

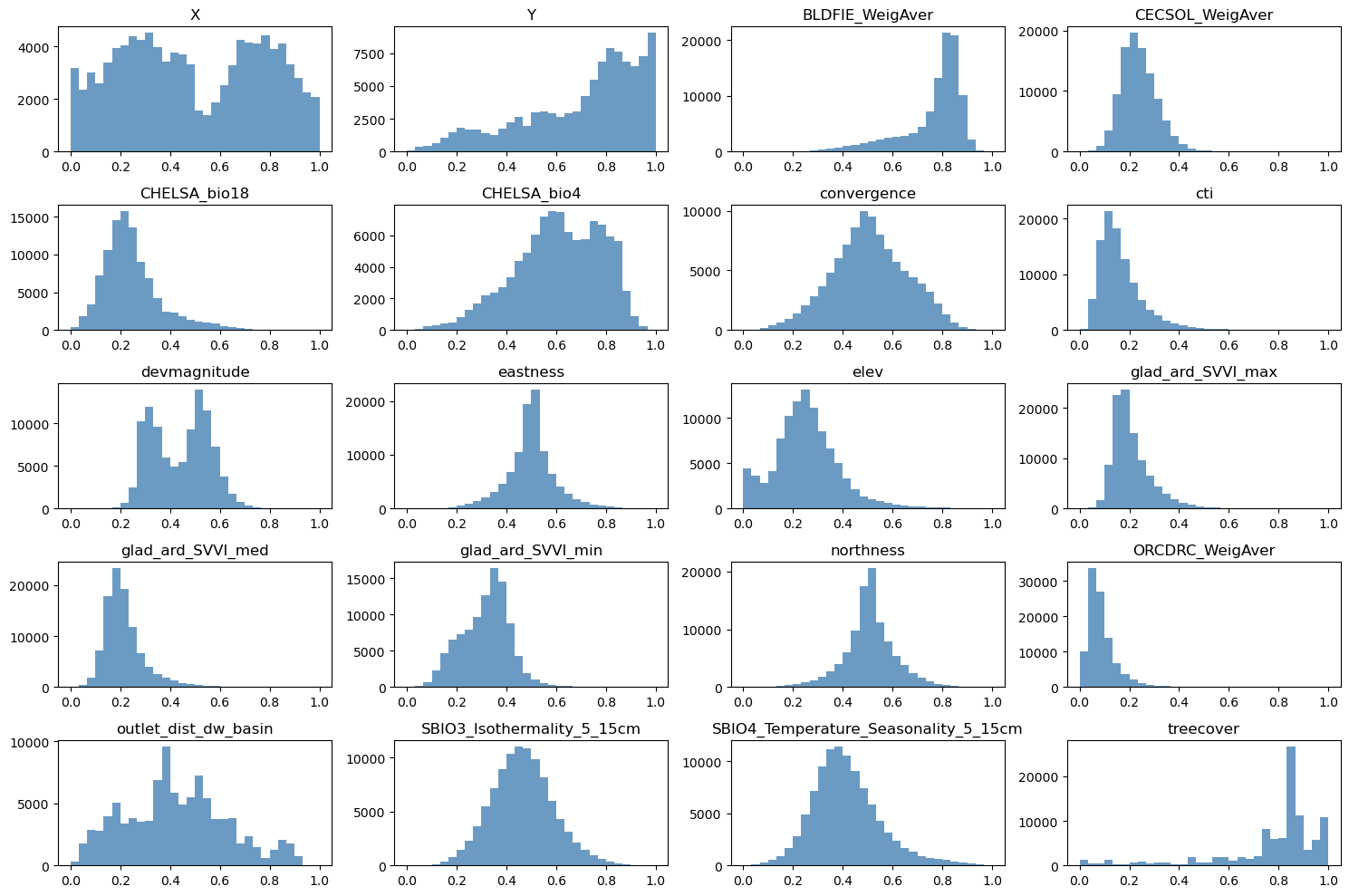

# Normalize features to [0, 1]
scaler_data = MinMaxScaler()
data_transformed = scaler_data.fit_transform(data)

# Grid size (near-square)
n_plots_x = int(np.ceil(np.sqrt(data.shape[1])))
n_plots_y = int(np.floor(np.sqrt(data.shape[1])))
print('data.shape[1]: {}, n_plots_x: {}, n_plots_y: {}'.format(data.shape[1], n_plots_x, n_plots_y))

# Subplots and flat axes
fig, ax = plt.subplots(n_plots_x, n_plots_y, figsize=(15, 10), dpi=100, facecolor='w', edgecolor='k')
ax = np.array(ax).ravel()

# Hist per feature (normalized)
for idx in range(data.shape[1]):
    ax[idx].hist(data_transformed[:, idx].ravel(), bins=30, color='steelblue', alpha=0.8)
    ax[idx].set_title(data.columns[idx])

# Layout
fig.tight_layout()

data.shape[1]: 20, n_plots_x: 5, n_plots_y: 4

# Let's use all the data as one big minibatch
tree_height = x3.copy() # We will the normalized tree_height

#Split the data
X_train, X_test, y_train, y_test = train_test_split(data_transformed,tree_height, test_size=0.30, random_state=0)
X_train = torch.FloatTensor(X_train)
y_train = torch.FloatTensor(y_train)
X_test = torch.FloatTensor(X_test)
y_test = torch.FloatTensor(y_test)
print('X_train.shape: {}, X_test.shape: {}, y_train.shape: {}, y_test.shape: {}'.format(X_train.shape, X_test.shape, y_train.shape, y_test.shape))
print('X_train.min: {}, X_test.min: {}, y_train.min: {}, y_test.min: {}'.format(X_train.min(), X_test.min(), y_train.min(), y_test.min()))
print('X_train.max: {}, X_test.max: {}, y_train.max: {}, y_test.max: {}'.format(X_train.max(), X_test.max(), y_train.max(), y_test.max()))

X_train.shape: torch.Size([70000, 20]), X_test.shape: torch.Size([30000, 20]), y_train.shape: torch.Size([70000]), y_test.shape: torch.Size([30000])
X_train.min: 0.0, X_test.min: 0.0, y_train.min: -2.261296272277832, y_test.min: -2.261296272277832
X_train.max: 1.0, X_test.max: 1.0, y_train.max: 2.261296272277832, y_test.max: 2.261296272277832

# Try with FF
class Feedforward(torch.nn.Module):
    def __init__(self, input_size, hidden_size):
        super(Feedforward, self).__init__()
        self.input_size = input_size
        self.hidden_size  = hidden_size
        self.fc1 = torch.nn.Linear(self.input_size, self.hidden_size)
        self.fc2 = torch.nn.Linear(self.hidden_size, self.hidden_size)
        self.relu = torch.nn.ReLU()
        self.fc3 = torch.nn.Linear(self.hidden_size, 1)
        self.sigmoid = torch.nn.Sigmoid()
        self.tanh = torch.nn.Tanh()
    def forward(self, x):
        hidden = self.relu(self.fc1(x))
        hidden = self.relu(self.fc2(hidden))
        output = self.tanh(self.fc3(hidden))

        return output

# model.train()
epoch = 10000
hid_dim_range = [128,256,512]
lr_range = [0.75,0.5,0.1,0.01]

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer
        model = Feedforward(data.shape[1], hid_dim).to(device)
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.SGD(model.parameters(), lr = lr)

        all_loss_train=[]
        all_loss_val=[]
        all_r_train=[]
        all_r_val=[]

        for epoch in range(epoch):
            model.train()
            optimizer.zero_grad()
            # Forward pass
            y_pred = model(X_train.to(device))
            # Compute Loss
            loss = criterion(y_pred.squeeze(), y_train.to(device))

            # Backward pass
            loss.backward()
            optimizer.step()

            all_loss_train.append(loss.item())
            y_pred = y_pred.cpu().detach().numpy().squeeze()
            _, _, r_value_train, _, _ = scipy.stats.linregress(y_pred, y_train)
            all_r_train.append(r_value_train)

            model.eval()
            with torch.no_grad():
                y_pred = model(X_test.to(device))
                # Compute Loss
                loss = criterion(y_pred.squeeze(), y_test.to(device))
                all_loss_val.append(loss.item())

                y_pred = y_pred.cpu().detach().numpy().squeeze()
                slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)
                all_r_val.append(r_value)
                # r_value2 = pearsonr(y_pred, y_test)[0]

                if epoch%500==0:
                    print('Epoch {}, train_loss: {:.4f}, val_loss: {:.4f}, r_value: {:.4f}'.format(epoch,all_loss_train[-1],all_loss_val[-1],r_value))

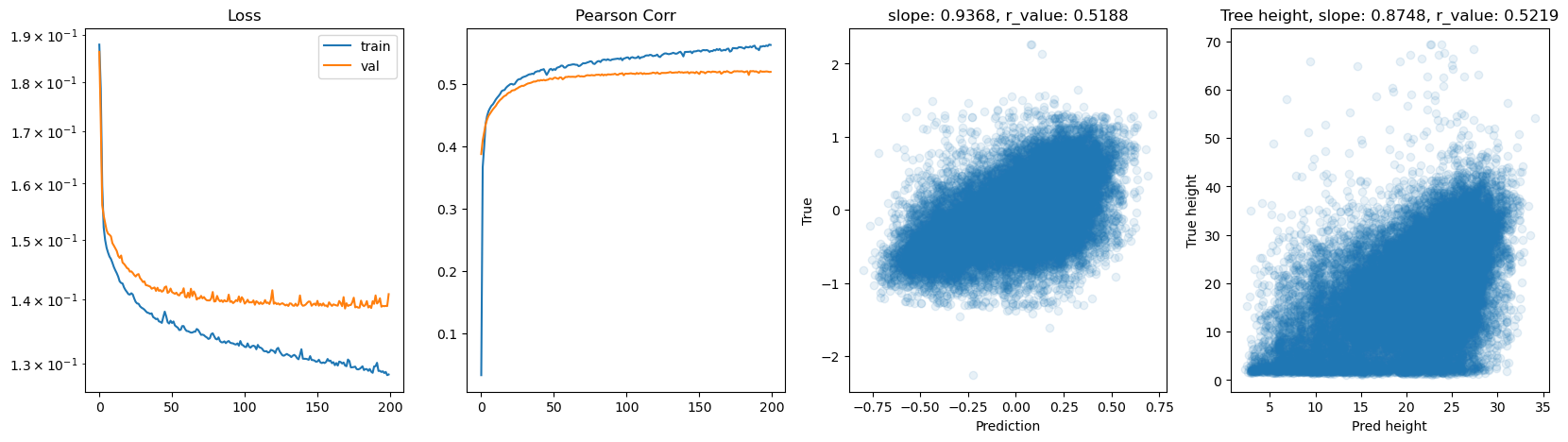

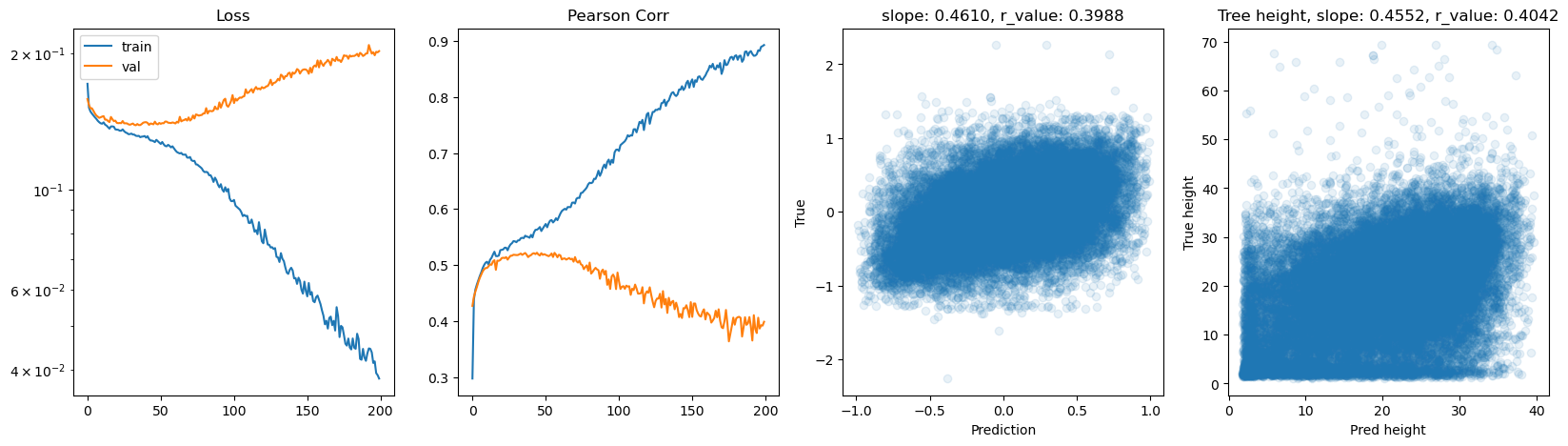

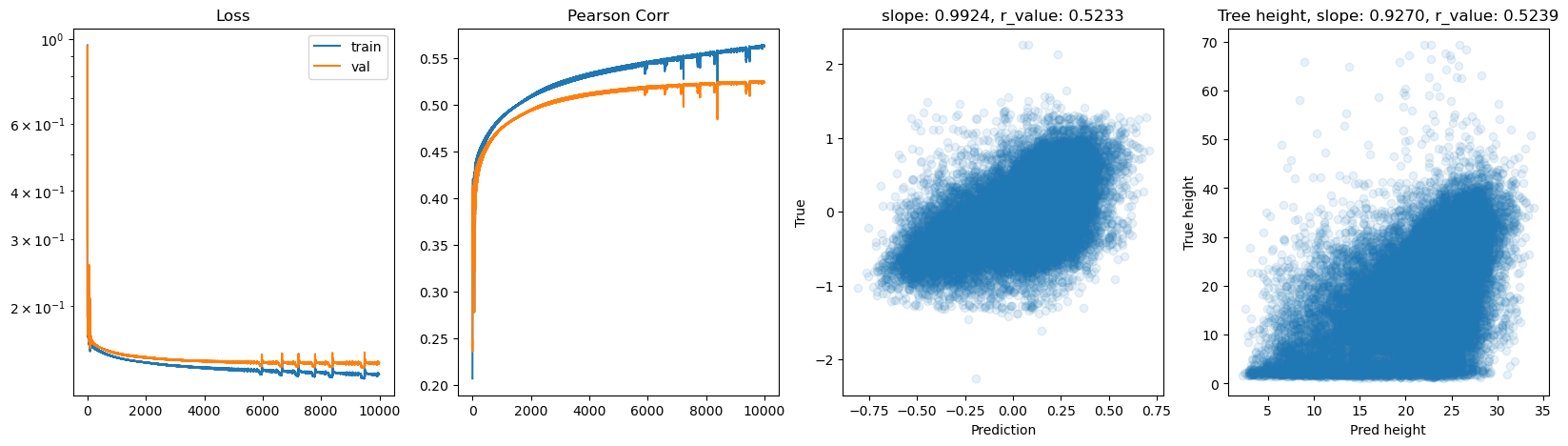

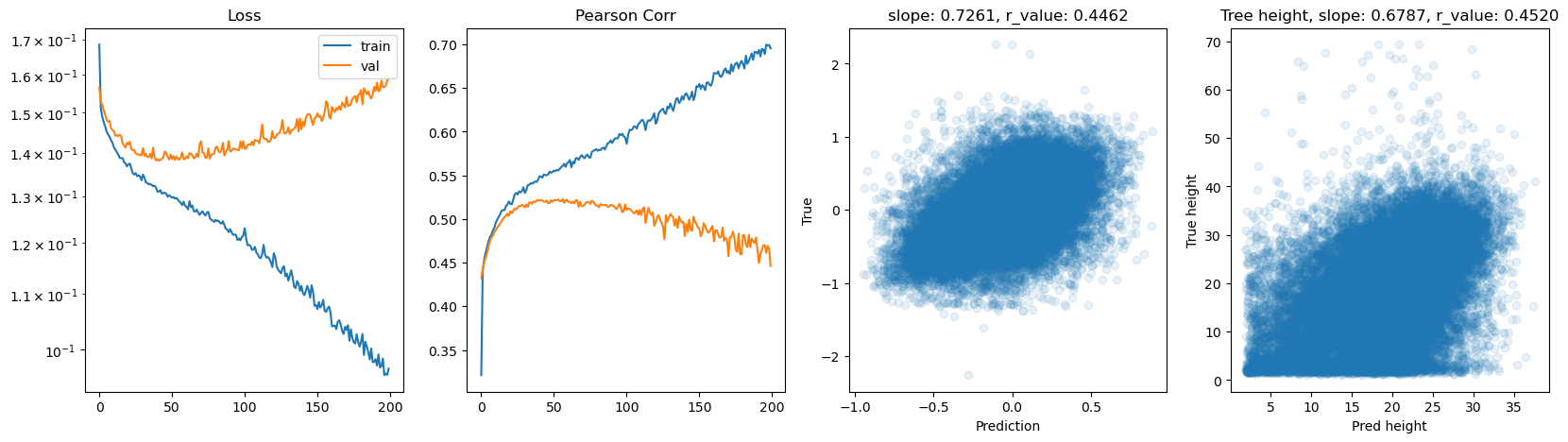

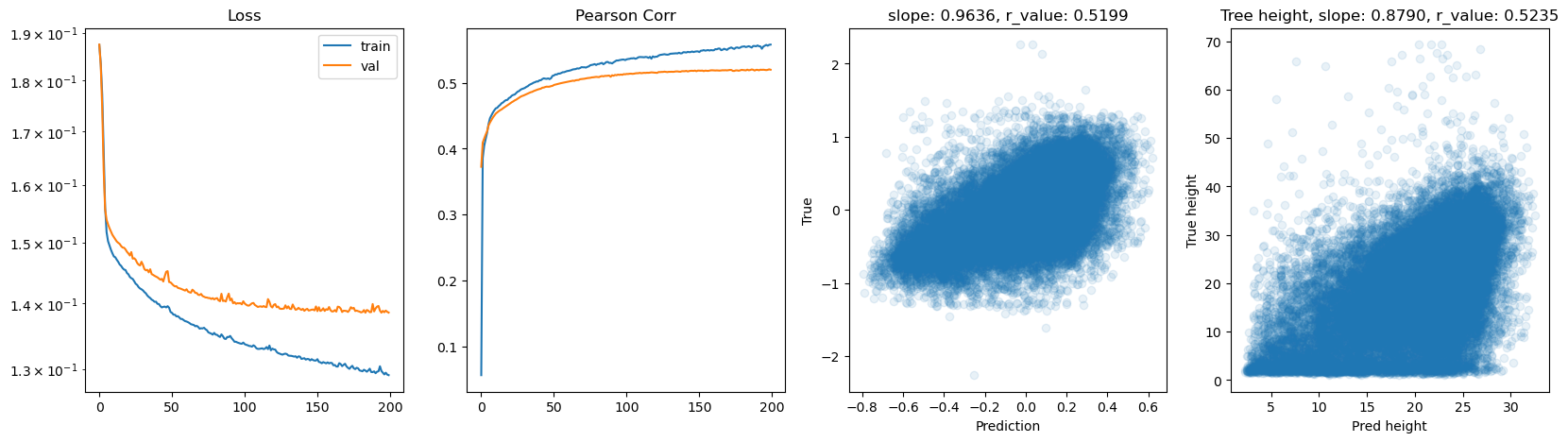

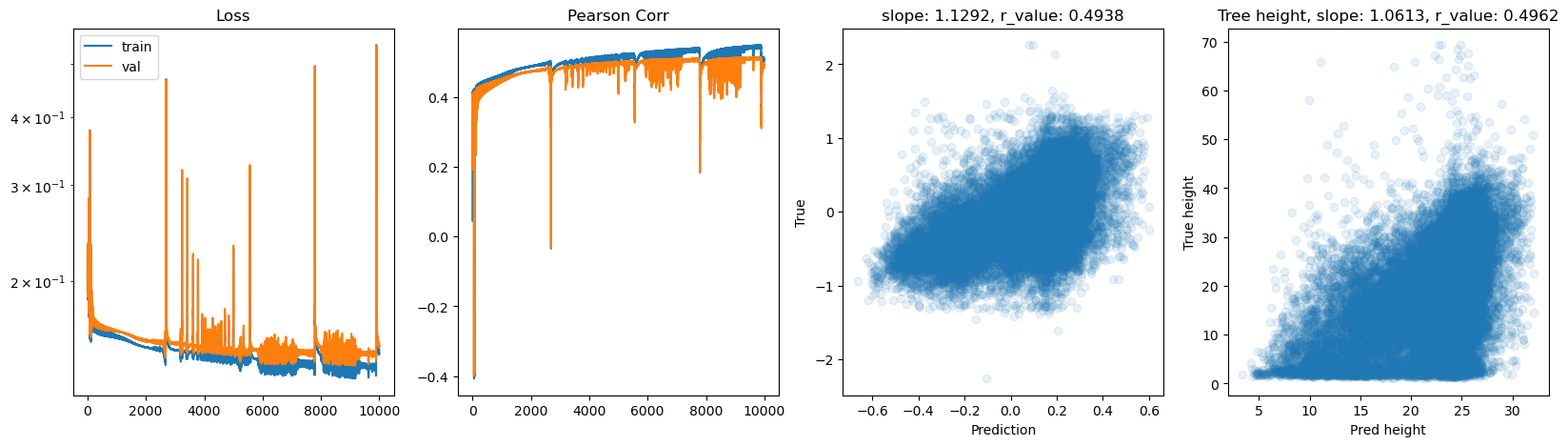

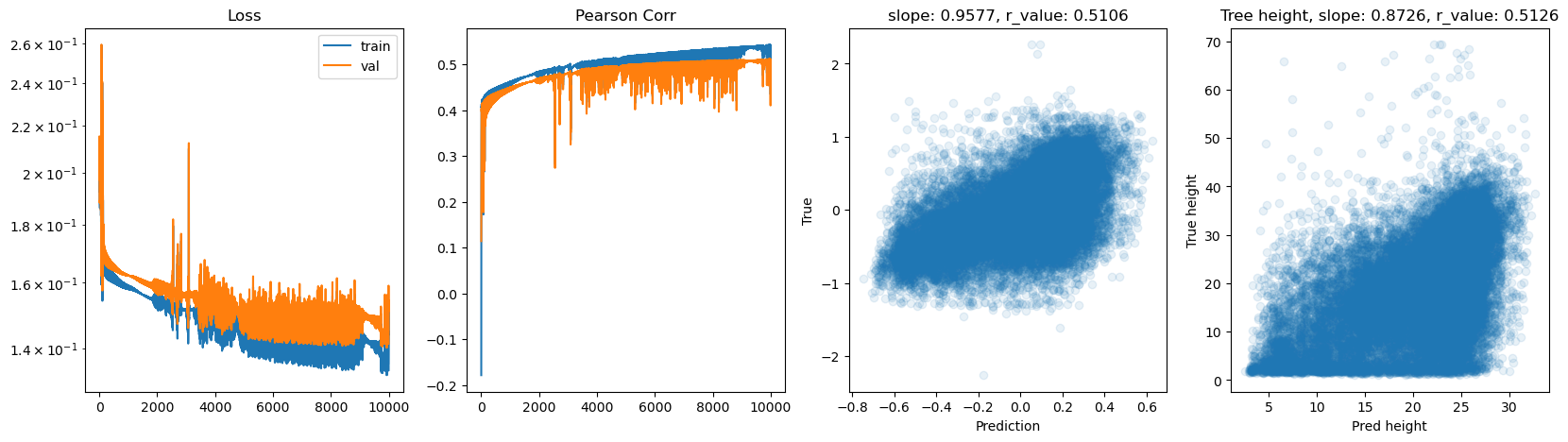

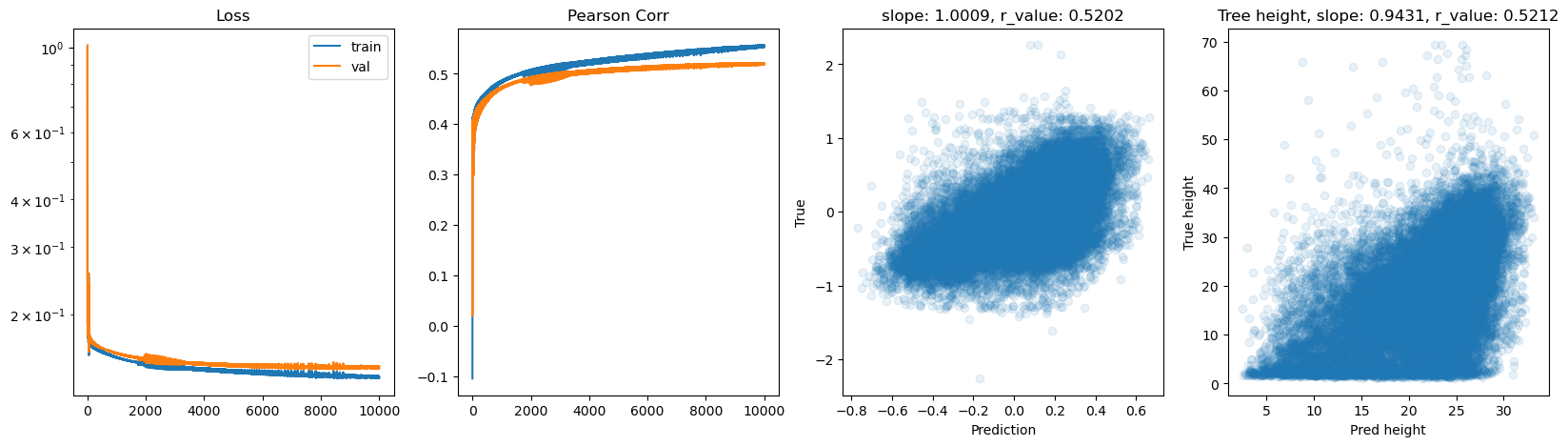

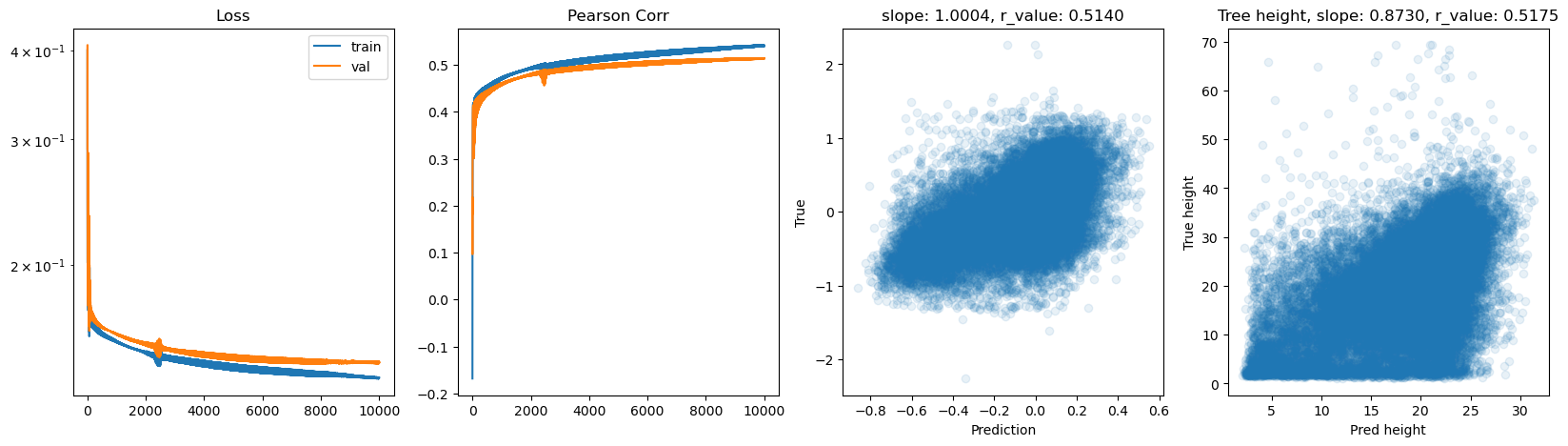

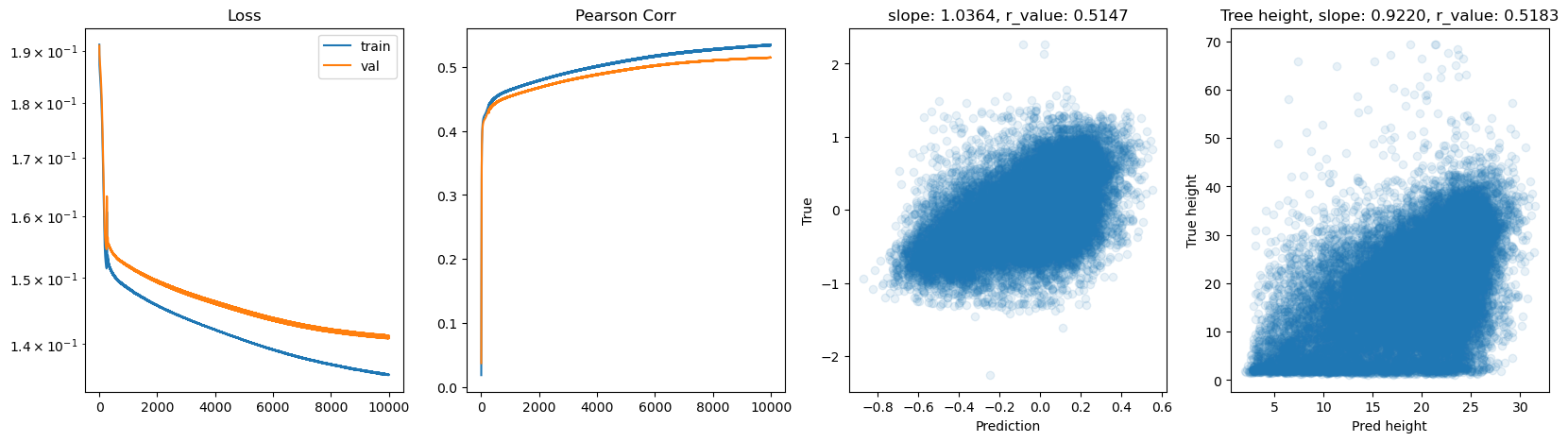

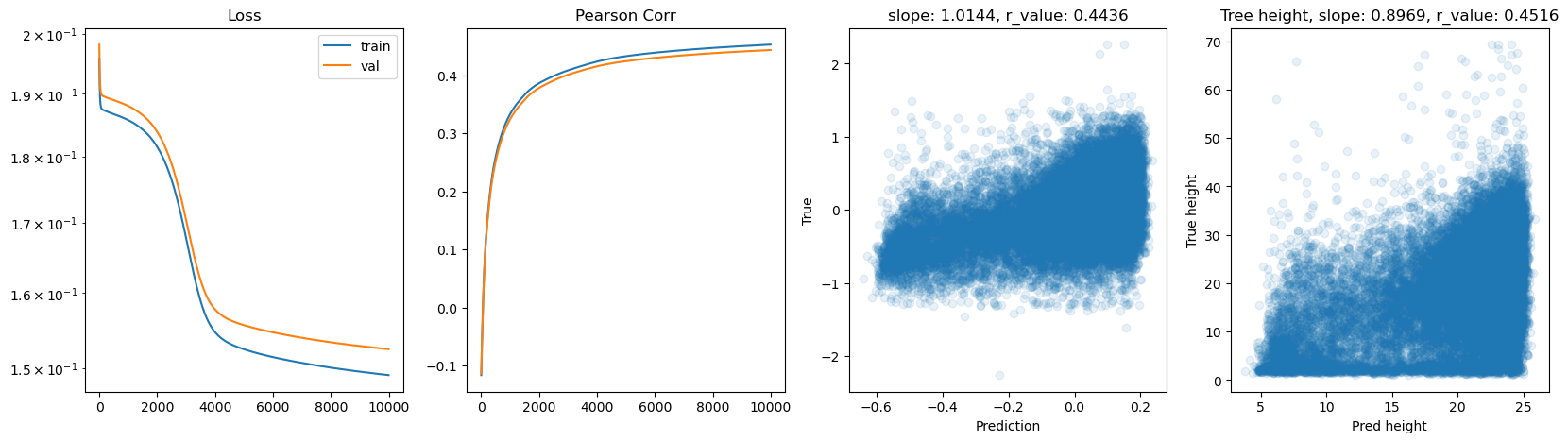

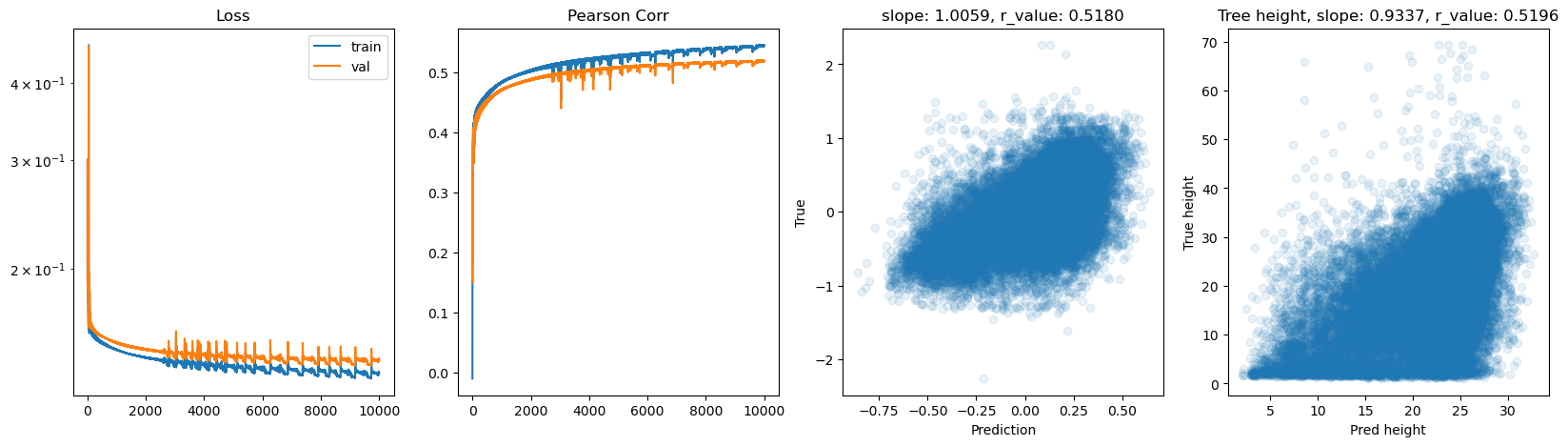

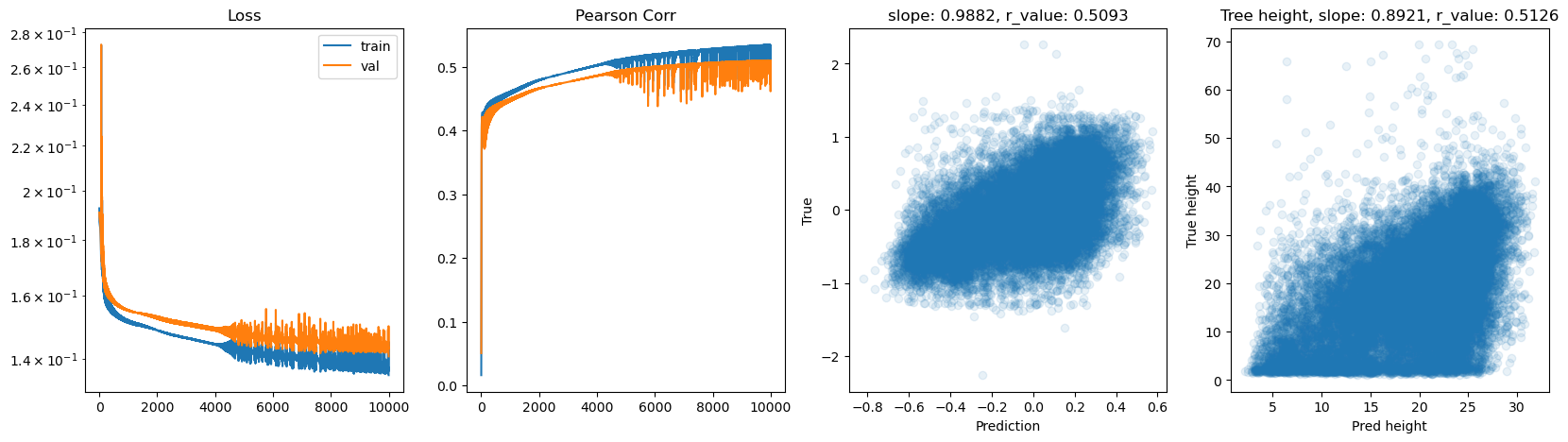

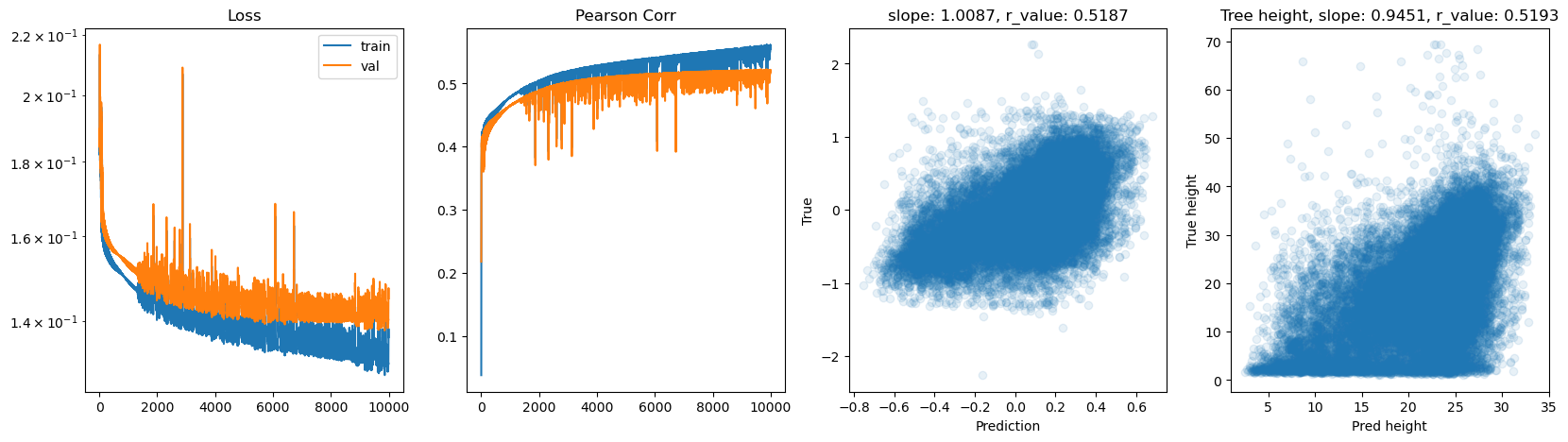

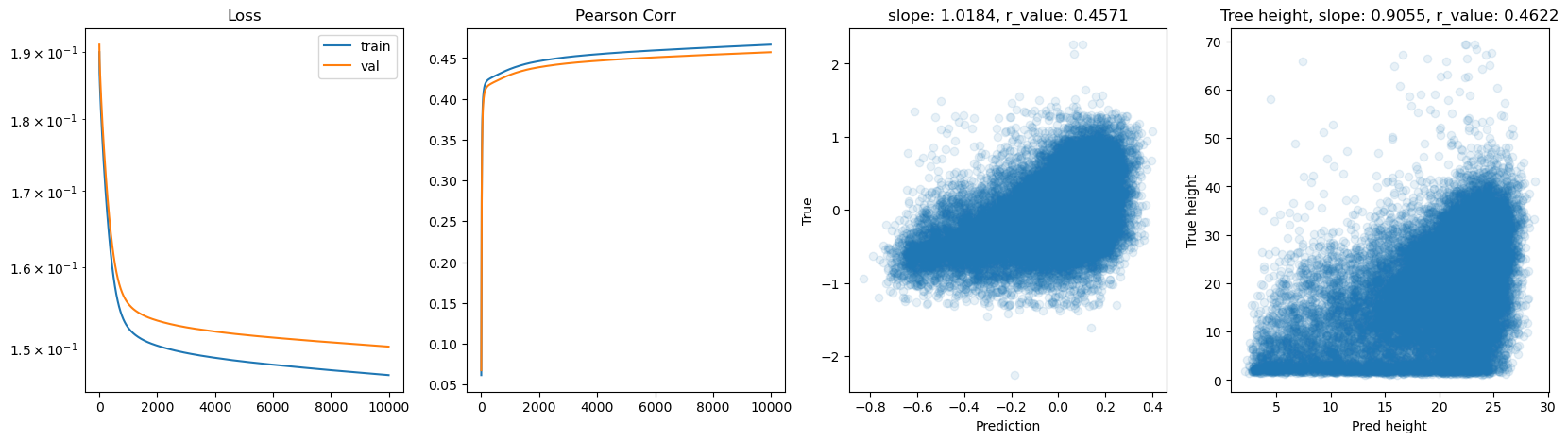

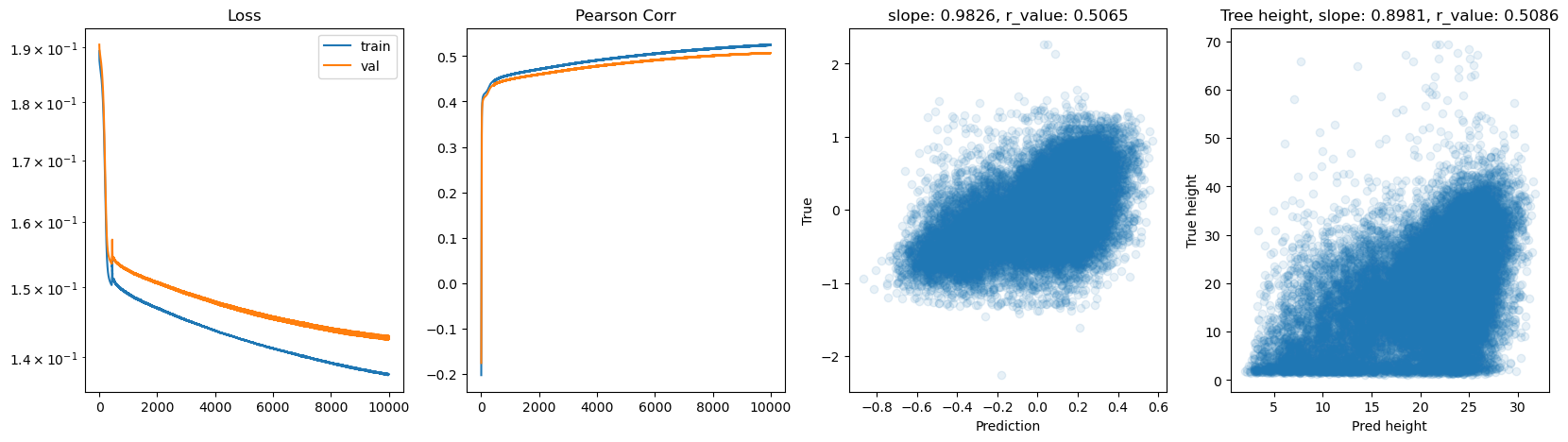

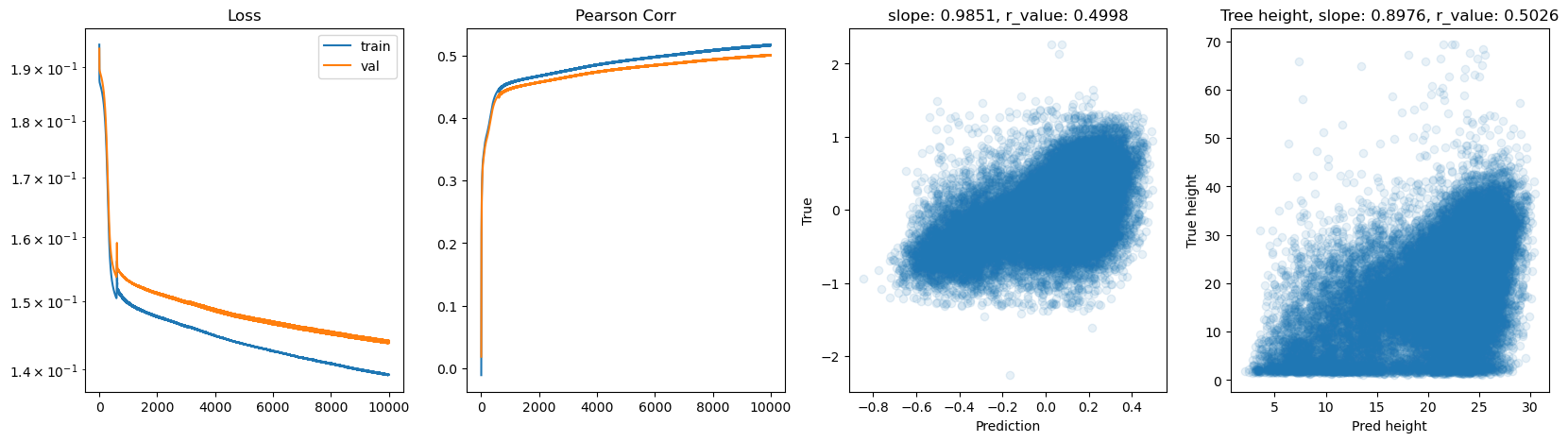

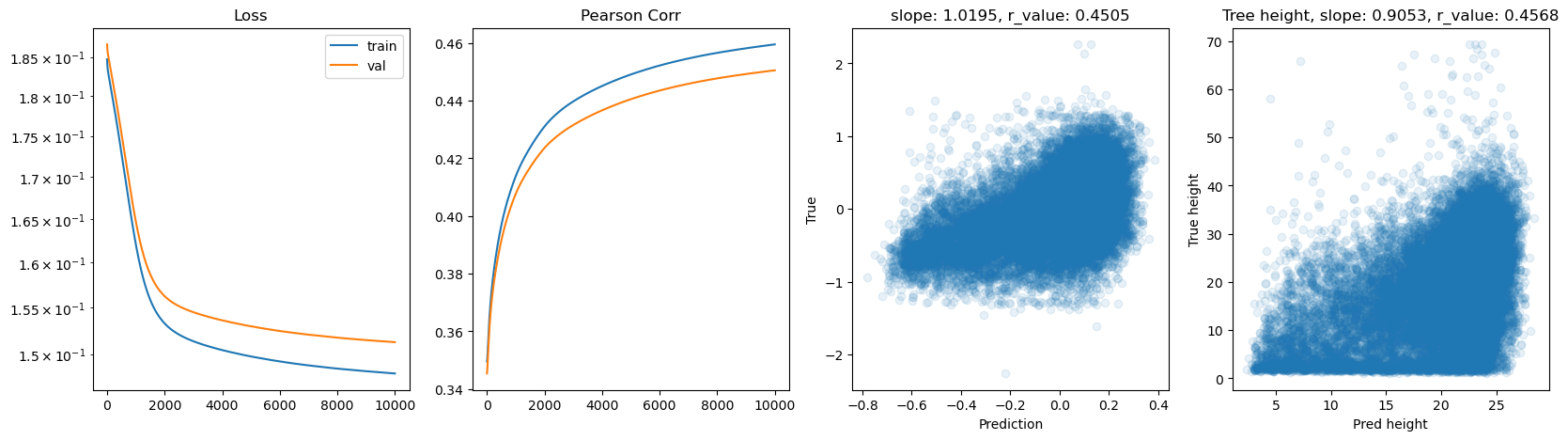

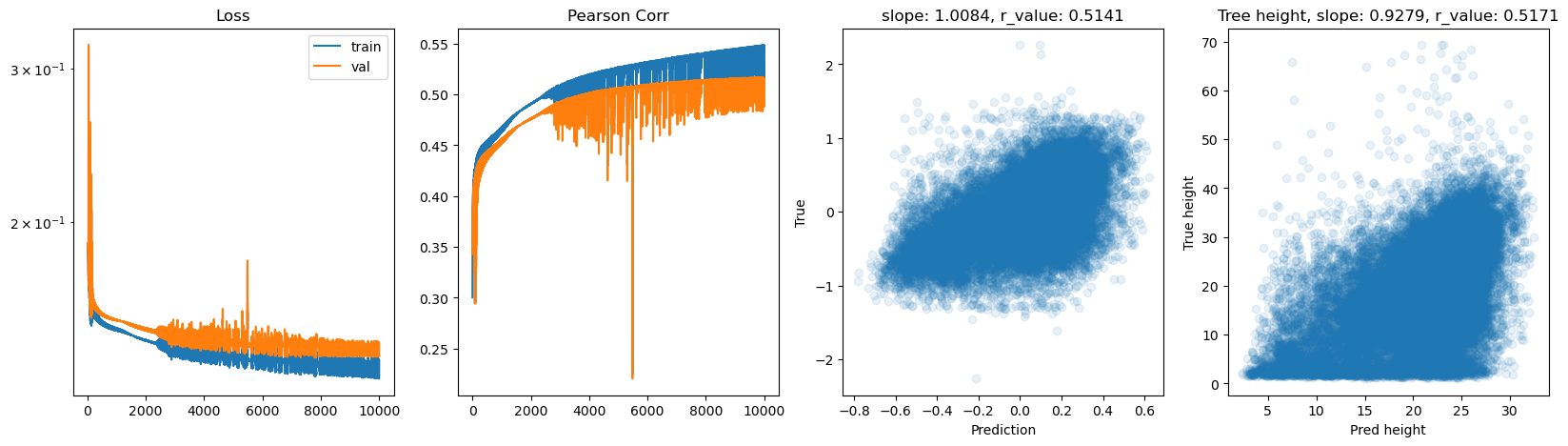

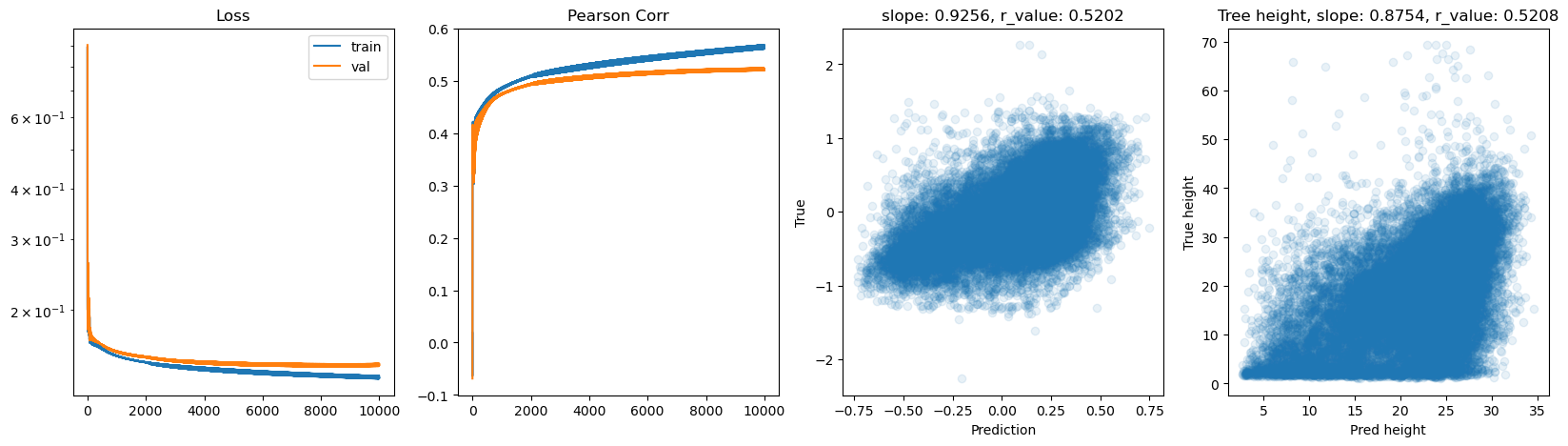

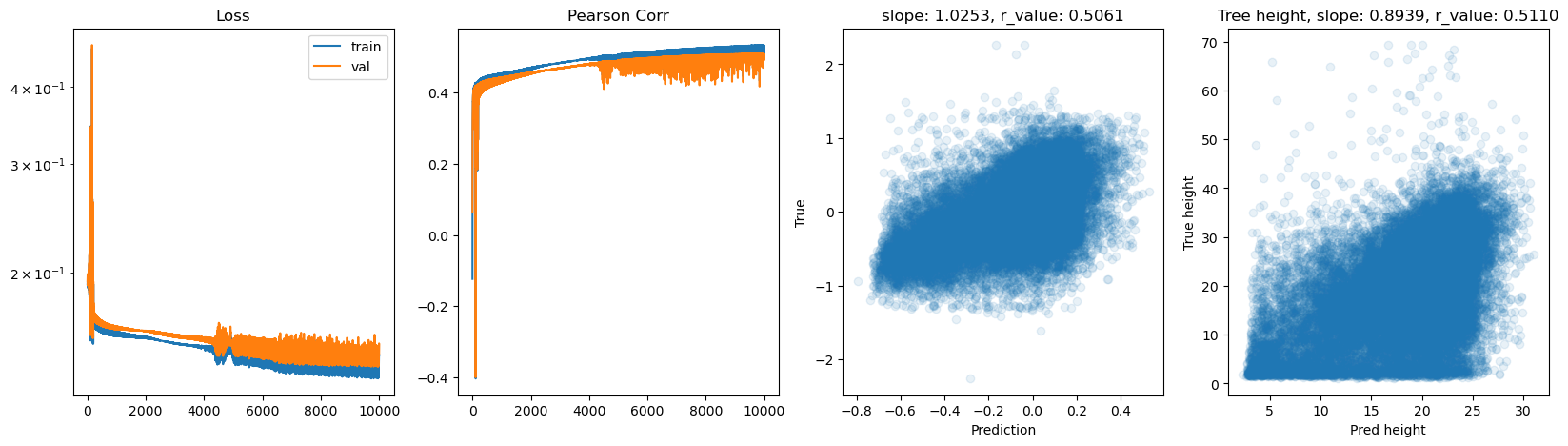

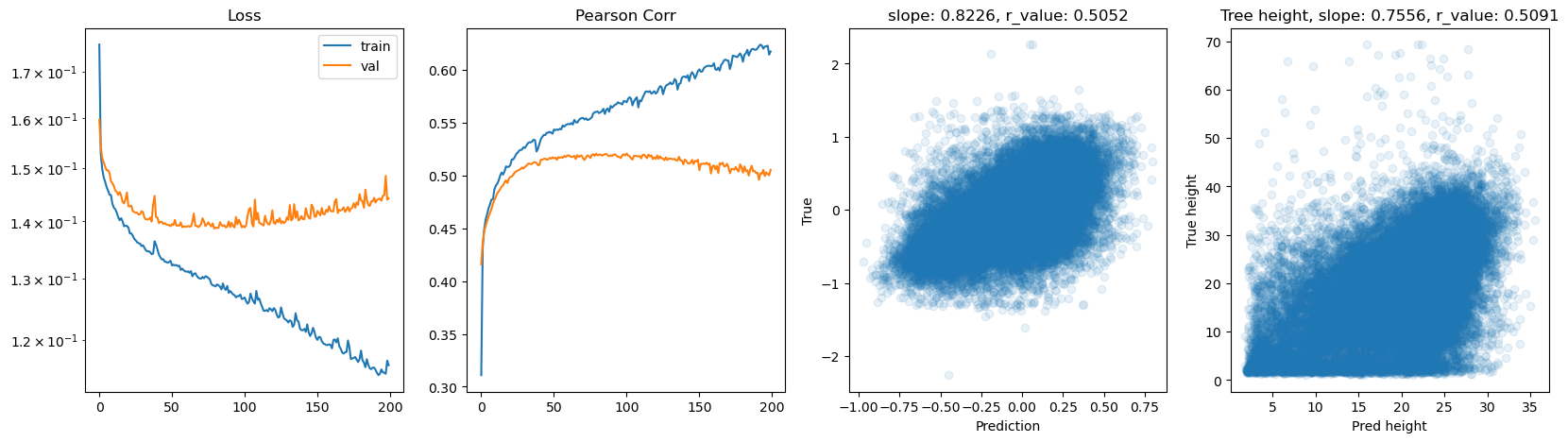

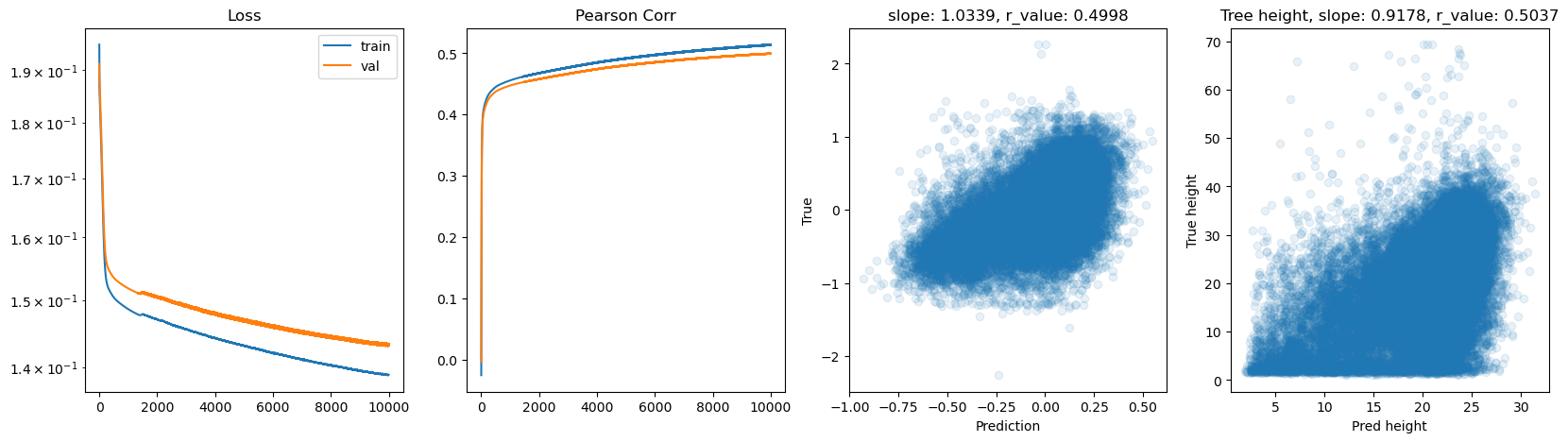

        fig,ax=plt.subplots(1,4,figsize=(20,5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].semilogy()
        ax[0].set_title('Loss')
        ax[0].legend(['train','val'])

        ax[1].plot(all_r_train)
        ax[1].plot(all_r_val)
        ax[1].set_title('Pearson Corr')

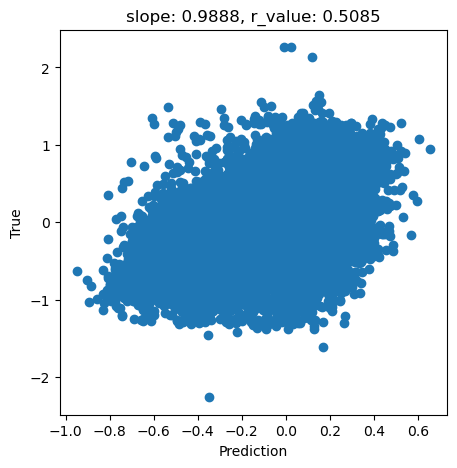

        ax[2].scatter(y_pred, y_test.cpu(), alpha=0.1)
        ax[2].set_xlabel('Prediction')
        ax[2].set_ylabel('True')
        ax[2].set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

        # Inverse the transformations back to the tree height
        # Inverse of step 3: multiply by q99, then reshape for scaler.inverse_transform
        tree_height_reversed = inverse_normalization(y_test.cpu().reshape(-1, 1), qt, scaler_tree, q99)
        pred_tree_heigth_reversed = inverse_normalization(y_pred.reshape(-1, 1), qt, scaler_tree, q99)
        slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(pred_tree_heigth_reversed, tree_height_reversed)
        ax[3].scatter(pred_tree_heigth_reversed, tree_height_reversed, alpha=0.1)
        ax[3].set_xlabel('Pred height')
        ax[3].set_ylabel('True height')
        ax[3].set_title('Tree height, slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

        plt.show()

hid_dim: 128, lr: 0.75
Epoch 0, train_loss: 0.2017, val_loss: 0.2907, r_value: 0.1826
Epoch 500, train_loss: 0.1589, val_loss: 0.1637, r_value: 0.4344
Epoch 1000, train_loss: 0.1554, val_loss: 0.1595, r_value: 0.4567
Epoch 1500, train_loss: 0.1526, val_loss: 0.1563, r_value: 0.4695
Epoch 2000, train_loss: 0.1500, val_loss: 0.1541, r_value: 0.4788
Epoch 2500, train_loss: 0.1481, val_loss: 0.1554, r_value: 0.4740
Epoch 3000, train_loss: 0.1460, val_loss: 0.1519, r_value: 0.4848
Epoch 3500, train_loss: 0.1449, val_loss: 0.1512, r_value: 0.4880
Epoch 4000, train_loss: 0.1438, val_loss: 0.1505, r_value: 0.4910
Epoch 4500, train_loss: 0.1429, val_loss: 0.1499, r_value: 0.4935
Epoch 5000, train_loss: 0.1420, val_loss: 0.1492, r_value: 0.4959
Epoch 5500, train_loss: 0.1414, val_loss: 0.1487, r_value: 0.4979
Epoch 6000, train_loss: 0.1409, val_loss: 0.1483, r_value: 0.4998
Epoch 6500, train_loss: 0.1404, val_loss: 0.1479, r_value: 0.5016
Epoch 7000, train_loss: 0.1400, val_loss: 0.1475, r_value: 0.5034
Epoch 7500, train_loss: 0.1398, val_loss: 0.1472, r_value: 0.5049
Epoch 8000, train_loss: 0.1395, val_loss: 0.1468, r_value: 0.5070
Epoch 8500, train_loss: 0.1395, val_loss: 0.1465, r_value: 0.5091
Epoch 9000, train_loss: 0.1391, val_loss: 0.1461, r_value: 0.5108
Epoch 9500, train_loss: 0.1387, val_loss: 0.1455, r_value: 0.5125

hid_dim: 128, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1908, val_loss: 0.2017, r_value: 0.2880
Epoch 500, train_loss: 0.1513, val_loss: 0.1555, r_value: 0.4483
Epoch 1000, train_loss: 0.1478, val_loss: 0.1515, r_value: 0.4695
Epoch 1500, train_loss: 0.1452, val_loss: 0.1492, r_value: 0.4798
Epoch 2000, train_loss: 0.1435, val_loss: 0.1478, r_value: 0.4867
Epoch 2500, train_loss: 0.1422, val_loss: 0.1468, r_value: 0.4918
Epoch 3000, train_loss: 0.1389, val_loss: 0.1442, r_value: 0.4922
Epoch 3500, train_loss: 0.1416, val_loss: 0.1464, r_value: 0.5017
Epoch 4000, train_loss: 0.1403, val_loss: 0.1451, r_value: 0.5044
Epoch 4500, train_loss: 0.1392, val_loss: 0.1444, r_value: 0.5044
Epoch 5000, train_loss: 0.1386, val_loss: 0.1436, r_value: 0.5090
Epoch 5500, train_loss: 0.1386, val_loss: 0.1439, r_value: 0.5106
Epoch 6000, train_loss: 0.1385, val_loss: 0.1440, r_value: 0.5120
Epoch 6500, train_loss: 0.1375, val_loss: 0.1430, r_value: 0.5134
Epoch 7000, train_loss: 0.1371, val_loss: 0.1429, r_value: 0.5130
Epoch 7500, train_loss: 0.1368, val_loss: 0.1427, r_value: 0.5142
Epoch 8000, train_loss: 0.1366, val_loss: 0.1426, r_value: 0.5154
Epoch 8500, train_loss: 0.1367, val_loss: 0.1428, r_value: 0.5160
Epoch 9000, train_loss: 0.1359, val_loss: 0.1421, r_value: 0.5167
Epoch 9500, train_loss: 0.1358, val_loss: 0.1422, r_value: 0.5175

hid_dim: 128, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1950, val_loss: 0.1912, r_value: -0.0032
Epoch 500, train_loss: 0.1504, val_loss: 0.1535, r_value: 0.4375
Epoch 1000, train_loss: 0.1486, val_loss: 0.1518, r_value: 0.4474
Epoch 1500, train_loss: 0.1478, val_loss: 0.1510, r_value: 0.4533
Epoch 2000, train_loss: 0.1470, val_loss: 0.1503, r_value: 0.4579
Epoch 2500, train_loss: 0.1462, val_loss: 0.1496, r_value: 0.4622
Epoch 3000, train_loss: 0.1456, val_loss: 0.1490, r_value: 0.4663
Epoch 3500, train_loss: 0.1449, val_loss: 0.1483, r_value: 0.4702
Epoch 4000, train_loss: 0.1442, val_loss: 0.1477, r_value: 0.4740
Epoch 4500, train_loss: 0.1436, val_loss: 0.1472, r_value: 0.4772
Epoch 5000, train_loss: 0.1431, val_loss: 0.1467, r_value: 0.4800
Epoch 5500, train_loss: 0.1426, val_loss: 0.1463, r_value: 0.4826
Epoch 6000, train_loss: 0.1421, val_loss: 0.1458, r_value: 0.4850
Epoch 6500, train_loss: 0.1416, val_loss: 0.1454, r_value: 0.4873
Epoch 7000, train_loss: 0.1412, val_loss: 0.1450, r_value: 0.4894
Epoch 7500, train_loss: 0.1406, val_loss: 0.1446, r_value: 0.4914
Epoch 8000, train_loss: 0.1402, val_loss: 0.1442, r_value: 0.4932
Epoch 8500, train_loss: 0.1399, val_loss: 0.1439, r_value: 0.4949
Epoch 9000, train_loss: 0.1395, val_loss: 0.1436, r_value: 0.4965
Epoch 9500, train_loss: 0.1391, val_loss: 0.1433, r_value: 0.4979

hid_dim: 128, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1848, val_loss: 0.1867, r_value: 0.3454
Epoch 500, train_loss: 0.1729, val_loss: 0.1753, r_value: 0.3916
Epoch 1000, train_loss: 0.1621, val_loss: 0.1647, r_value: 0.4077
Epoch 1500, train_loss: 0.1559, val_loss: 0.1587, r_value: 0.4169
Epoch 2000, train_loss: 0.1533, val_loss: 0.1563, r_value: 0.4236
Epoch 2500, train_loss: 0.1521, val_loss: 0.1552, r_value: 0.4282
Epoch 3000, train_loss: 0.1514, val_loss: 0.1545, r_value: 0.4316
Epoch 3500, train_loss: 0.1508, val_loss: 0.1540, r_value: 0.4343
Epoch 4000, train_loss: 0.1504, val_loss: 0.1536, r_value: 0.4367
Epoch 4500, train_loss: 0.1501, val_loss: 0.1533, r_value: 0.4387
Epoch 5000, train_loss: 0.1497, val_loss: 0.1530, r_value: 0.4405
Epoch 5500, train_loss: 0.1495, val_loss: 0.1527, r_value: 0.4421
Epoch 6000, train_loss: 0.1492, val_loss: 0.1525, r_value: 0.4435
Epoch 6500, train_loss: 0.1490, val_loss: 0.1523, r_value: 0.4448
Epoch 7000, train_loss: 0.1488, val_loss: 0.1521, r_value: 0.4459
Epoch 7500, train_loss: 0.1486, val_loss: 0.1519, r_value: 0.4469
Epoch 8000, train_loss: 0.1485, val_loss: 0.1517, r_value: 0.4478
Epoch 8500, train_loss: 0.1483, val_loss: 0.1516, r_value: 0.4486
Epoch 9000, train_loss: 0.1482, val_loss: 0.1515, r_value: 0.4493
Epoch 9500, train_loss: 0.1481, val_loss: 0.1514, r_value: 0.4499

hid_dim: 256, lr: 0.75
Deleting previous model
Epoch 0, train_loss: 0.1895, val_loss: 0.2465, r_value: 0.3170
Epoch 500, train_loss: 0.1606, val_loss: 0.1631, r_value: 0.4545
Epoch 1000, train_loss: 0.1546, val_loss: 0.1586, r_value: 0.4739
Epoch 1500, train_loss: 0.1510, val_loss: 0.1555, r_value: 0.4849
Epoch 2000, train_loss: 0.1497, val_loss: 0.1545, r_value: 0.4897
Epoch 2500, train_loss: 0.1451, val_loss: 0.1497, r_value: 0.4963
Epoch 3000, train_loss: 0.1442, val_loss: 0.1491, r_value: 0.5008
Epoch 3500, train_loss: 0.1453, val_loss: 0.1497, r_value: 0.4995
Epoch 4000, train_loss: 0.1446, val_loss: 0.1490, r_value: 0.5025
Epoch 4500, train_loss: 0.1438, val_loss: 0.1484, r_value: 0.5053
Epoch 5000, train_loss: 0.1430, val_loss: 0.1477, r_value: 0.5079
Epoch 5500, train_loss: 0.1422, val_loss: 0.1471, r_value: 0.5104
Epoch 6000, train_loss: 0.1414, val_loss: 0.1467, r_value: 0.5123
Epoch 6500, train_loss: 0.1407, val_loss: 0.1463, r_value: 0.5139
Epoch 7000, train_loss: 0.1393, val_loss: 0.1455, r_value: 0.5166
Epoch 7500, train_loss: 0.1397, val_loss: 0.1461, r_value: 0.5167
Epoch 8000, train_loss: 0.1381, val_loss: 0.1465, r_value: 0.5185
Epoch 8500, train_loss: 0.1369, val_loss: 0.1454, r_value: 0.5202
Epoch 9000, train_loss: 0.1367, val_loss: 0.1457, r_value: 0.5205
Epoch 9500, train_loss: 0.1364, val_loss: 0.1458, r_value: 0.5210

hid_dim: 256, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1924, val_loss: 0.2624, r_value: -0.0000
Epoch 500, train_loss: 0.1520, val_loss: 0.1549, r_value: 0.4582
Epoch 1000, train_loss: 0.1472, val_loss: 0.1511, r_value: 0.4762
Epoch 1500, train_loss: 0.1447, val_loss: 0.1491, r_value: 0.4858
Epoch 2000, train_loss: 0.1432, val_loss: 0.1477, r_value: 0.4933
Epoch 2500, train_loss: 0.1419, val_loss: 0.1464, r_value: 0.4994
Epoch 3000, train_loss: 0.1408, val_loss: 0.1453, r_value: 0.5038
Epoch 3500, train_loss: 0.1401, val_loss: 0.1448, r_value: 0.5070
Epoch 4000, train_loss: 0.1388, val_loss: 0.1437, r_value: 0.5096
Epoch 4500, train_loss: 0.1378, val_loss: 0.1429, r_value: 0.5116
Epoch 5000, train_loss: 0.1353, val_loss: 0.1411, r_value: 0.5131
Epoch 5500, train_loss: 0.1384, val_loss: 0.1442, r_value: 0.5147
Epoch 6000, train_loss: 0.1373, val_loss: 0.1433, r_value: 0.5160
Epoch 6500, train_loss: 0.1333, val_loss: 0.1396, r_value: 0.5160
Epoch 7000, train_loss: 0.1344, val_loss: 0.1413, r_value: 0.5149
Epoch 7500, train_loss: 0.1353, val_loss: 0.1421, r_value: 0.5175
Epoch 8000, train_loss: 0.1361, val_loss: 0.1428, r_value: 0.5182
Epoch 8500, train_loss: 0.1351, val_loss: 0.1424, r_value: 0.5203
Epoch 9000, train_loss: 0.1354, val_loss: 0.1430, r_value: 0.5207
Epoch 9500, train_loss: 0.1345, val_loss: 0.1429, r_value: 0.5213

hid_dim: 256, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1862, val_loss: 0.1876, r_value: 0.1682
Epoch 500, train_loss: 0.1505, val_loss: 0.1537, r_value: 0.4415
Epoch 1000, train_loss: 0.1487, val_loss: 0.1520, r_value: 0.4511
Epoch 1500, train_loss: 0.1475, val_loss: 0.1510, r_value: 0.4574
Epoch 2000, train_loss: 0.1465, val_loss: 0.1501, r_value: 0.4626
Epoch 2500, train_loss: 0.1457, val_loss: 0.1494, r_value: 0.4673
Epoch 3000, train_loss: 0.1448, val_loss: 0.1486, r_value: 0.4717
Epoch 3500, train_loss: 0.1440, val_loss: 0.1478, r_value: 0.4757
Epoch 4000, train_loss: 0.1434, val_loss: 0.1473, r_value: 0.4793
Epoch 4500, train_loss: 0.1427, val_loss: 0.1467, r_value: 0.4826
Epoch 5000, train_loss: 0.1421, val_loss: 0.1462, r_value: 0.4856
Epoch 5500, train_loss: 0.1415, val_loss: 0.1457, r_value: 0.4883
Epoch 6000, train_loss: 0.1409, val_loss: 0.1452, r_value: 0.4909
Epoch 6500, train_loss: 0.1404, val_loss: 0.1448, r_value: 0.4933
Epoch 7000, train_loss: 0.1399, val_loss: 0.1443, r_value: 0.4954
Epoch 7500, train_loss: 0.1394, val_loss: 0.1440, r_value: 0.4974
Epoch 8000, train_loss: 0.1389, val_loss: 0.1436, r_value: 0.4993
Epoch 8500, train_loss: 0.1385, val_loss: 0.1432, r_value: 0.5010
Epoch 9000, train_loss: 0.1381, val_loss: 0.1429, r_value: 0.5025
Epoch 9500, train_loss: 0.1377, val_loss: 0.1426, r_value: 0.5039

hid_dim: 256, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1958, val_loss: 0.1973, r_value: -0.1141
Epoch 500, train_loss: 0.1711, val_loss: 0.1736, r_value: 0.4022
Epoch 1000, train_loss: 0.1591, val_loss: 0.1619, r_value: 0.4160
Epoch 1500, train_loss: 0.1539, val_loss: 0.1569, r_value: 0.4235
Epoch 2000, train_loss: 0.1522, val_loss: 0.1552, r_value: 0.4288
Epoch 2500, train_loss: 0.1513, val_loss: 0.1544, r_value: 0.4324
Epoch 3000, train_loss: 0.1508, val_loss: 0.1539, r_value: 0.4353
Epoch 3500, train_loss: 0.1503, val_loss: 0.1535, r_value: 0.4377
Epoch 4000, train_loss: 0.1500, val_loss: 0.1531, r_value: 0.4398
Epoch 4500, train_loss: 0.1496, val_loss: 0.1528, r_value: 0.4416
Epoch 5000, train_loss: 0.1493, val_loss: 0.1525, r_value: 0.4432
Epoch 5500, train_loss: 0.1491, val_loss: 0.1523, r_value: 0.4446
Epoch 6000, train_loss: 0.1489, val_loss: 0.1521, r_value: 0.4459
Epoch 6500, train_loss: 0.1487, val_loss: 0.1519, r_value: 0.4470
Epoch 7000, train_loss: 0.1485, val_loss: 0.1517, r_value: 0.4480
Epoch 7500, train_loss: 0.1483, val_loss: 0.1515, r_value: 0.4489
Epoch 8000, train_loss: 0.1482, val_loss: 0.1514, r_value: 0.4498
Epoch 8500, train_loss: 0.1480, val_loss: 0.1513, r_value: 0.4506
Epoch 9000, train_loss: 0.1479, val_loss: 0.1511, r_value: 0.4514
Epoch 9500, train_loss: 0.1477, val_loss: 0.1510, r_value: 0.4521

hid_dim: 512, lr: 0.75
Deleting previous model
Epoch 0, train_loss: 0.2013, val_loss: 0.9047, r_value: -0.0687
Epoch 500, train_loss: 0.1613, val_loss: 0.1642, r_value: 0.4547
Epoch 1000, train_loss: 0.1544, val_loss: 0.1584, r_value: 0.4757
Epoch 1500, train_loss: 0.1509, val_loss: 0.1554, r_value: 0.4863
Epoch 2000, train_loss: 0.1487, val_loss: 0.1535, r_value: 0.4947
Epoch 2500, train_loss: 0.1471, val_loss: 0.1518, r_value: 0.4963
Epoch 3000, train_loss: 0.1460, val_loss: 0.1505, r_value: 0.5000
Epoch 3500, train_loss: 0.1450, val_loss: 0.1496, r_value: 0.5031
Epoch 4000, train_loss: 0.1441, val_loss: 0.1489, r_value: 0.5062
Epoch 4500, train_loss: 0.1433, val_loss: 0.1483, r_value: 0.5091
Epoch 5000, train_loss: 0.1426, val_loss: 0.1478, r_value: 0.5115
Epoch 5500, train_loss: 0.1419, val_loss: 0.1475, r_value: 0.5137
Epoch 6000, train_loss: 0.1412, val_loss: 0.1472, r_value: 0.5154
Epoch 6500, train_loss: 0.1407, val_loss: 0.1470, r_value: 0.5168
Epoch 7000, train_loss: 0.1401, val_loss: 0.1469, r_value: 0.5182
Epoch 7500, train_loss: 0.1396, val_loss: 0.1468, r_value: 0.5193
Epoch 8000, train_loss: 0.1391, val_loss: 0.1468, r_value: 0.5203
Epoch 8500, train_loss: 0.1386, val_loss: 0.1468, r_value: 0.5211
Epoch 9000, train_loss: 0.1382, val_loss: 0.1469, r_value: 0.5216
Epoch 9500, train_loss: 0.1378, val_loss: 0.1470, r_value: 0.5221

hid_dim: 512, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1877, val_loss: 0.2862, r_value: 0.2483
Epoch 500, train_loss: 0.1513, val_loss: 0.1551, r_value: 0.4532
Epoch 1000, train_loss: 0.1469, val_loss: 0.1504, r_value: 0.4742
Epoch 1500, train_loss: 0.1443, val_loss: 0.1481, r_value: 0.4852
Epoch 2000, train_loss: 0.1425, val_loss: 0.1467, r_value: 0.4933
Epoch 2500, train_loss: 0.1409, val_loss: 0.1456, r_value: 0.4992
Epoch 3000, train_loss: 0.1397, val_loss: 0.1448, r_value: 0.5035
Epoch 3500, train_loss: 0.1387, val_loss: 0.1441, r_value: 0.5069
Epoch 4000, train_loss: 0.1379, val_loss: 0.1436, r_value: 0.5098
Epoch 4500, train_loss: 0.1376, val_loss: 0.1436, r_value: 0.5124
Epoch 5000, train_loss: 0.1369, val_loss: 0.1430, r_value: 0.5141
Epoch 5500, train_loss: 0.1372, val_loss: 0.1437, r_value: 0.5160
Epoch 6000, train_loss: 0.1374, val_loss: 0.1438, r_value: 0.5173
Epoch 6500, train_loss: 0.1351, val_loss: 0.1421, r_value: 0.5185
Epoch 7000, train_loss: 0.1346, val_loss: 0.1419, r_value: 0.5192
Epoch 7500, train_loss: 0.1348, val_loss: 0.1422, r_value: 0.5205
Epoch 8000, train_loss: 0.1344, val_loss: 0.1423, r_value: 0.5213
Epoch 8500, train_loss: 0.1340, val_loss: 0.1421, r_value: 0.5220
Epoch 9000, train_loss: 0.1333, val_loss: 0.1418, r_value: 0.5226
Epoch 9500, train_loss: 0.1318, val_loss: 0.1399, r_value: 0.5224

hid_dim: 512, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1903, val_loss: 0.1893, r_value: 0.1326
Epoch 500, train_loss: 0.1493, val_loss: 0.1523, r_value: 0.4482
Epoch 1000, train_loss: 0.1474, val_loss: 0.1506, r_value: 0.4571
Epoch 1500, train_loss: 0.1462, val_loss: 0.1495, r_value: 0.4637
Epoch 2000, train_loss: 0.1452, val_loss: 0.1486, r_value: 0.4695
Epoch 2500, train_loss: 0.1443, val_loss: 0.1478, r_value: 0.4745
Epoch 3000, train_loss: 0.1435, val_loss: 0.1470, r_value: 0.4790
Epoch 3500, train_loss: 0.1427, val_loss: 0.1463, r_value: 0.4830
Epoch 4000, train_loss: 0.1420, val_loss: 0.1457, r_value: 0.4866
Epoch 4500, train_loss: 0.1413, val_loss: 0.1451, r_value: 0.4900
Epoch 5000, train_loss: 0.1406, val_loss: 0.1445, r_value: 0.4932
Epoch 5500, train_loss: 0.1399, val_loss: 0.1439, r_value: 0.4961
Epoch 6000, train_loss: 0.1394, val_loss: 0.1434, r_value: 0.4988
Epoch 6500, train_loss: 0.1388, val_loss: 0.1430, r_value: 0.5012
Epoch 7000, train_loss: 0.1383, val_loss: 0.1425, r_value: 0.5033
Epoch 7500, train_loss: 0.1378, val_loss: 0.1421, r_value: 0.5052
Epoch 8000, train_loss: 0.1373, val_loss: 0.1417, r_value: 0.5068
Epoch 8500, train_loss: 0.1369, val_loss: 0.1414, r_value: 0.5082
Epoch 9000, train_loss: 0.1366, val_loss: 0.1411, r_value: 0.5095
Epoch 9500, train_loss: 0.1363, val_loss: 0.1409, r_value: 0.5106

hid_dim: 512, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1899, val_loss: 0.1911, r_value: 0.0675
Epoch 500, train_loss: 0.1585, val_loss: 0.1613, r_value: 0.4214
Epoch 1000, train_loss: 0.1524, val_loss: 0.1554, r_value: 0.4294
Epoch 1500, train_loss: 0.1510, val_loss: 0.1540, r_value: 0.4350
Epoch 2000, train_loss: 0.1503, val_loss: 0.1533, r_value: 0.4387
Epoch 2500, train_loss: 0.1498, val_loss: 0.1528, r_value: 0.4414
Epoch 3000, train_loss: 0.1494, val_loss: 0.1525, r_value: 0.4435
Epoch 3500, train_loss: 0.1491, val_loss: 0.1522, r_value: 0.4451
Epoch 4000, train_loss: 0.1488, val_loss: 0.1520, r_value: 0.4465
Epoch 4500, train_loss: 0.1486, val_loss: 0.1517, r_value: 0.4478
Epoch 5000, train_loss: 0.1484, val_loss: 0.1516, r_value: 0.4489
Epoch 5500, train_loss: 0.1482, val_loss: 0.1514, r_value: 0.4499
Epoch 6000, train_loss: 0.1480, val_loss: 0.1512, r_value: 0.4508
Epoch 6500, train_loss: 0.1478, val_loss: 0.1511, r_value: 0.4517
Epoch 7000, train_loss: 0.1477, val_loss: 0.1509, r_value: 0.4525
Epoch 7500, train_loss: 0.1475, val_loss: 0.1508, r_value: 0.4533
Epoch 8000, train_loss: 0.1473, val_loss: 0.1507, r_value: 0.4541
Epoch 8500, train_loss: 0.1472, val_loss: 0.1505, r_value: 0.4549
Epoch 9000, train_loss: 0.1470, val_loss: 0.1504, r_value: 0.4556
Epoch 9500, train_loss: 0.1469, val_loss: 0.1503, r_value: 0.4564

# Try deeper FF
class Feedforward(torch.nn.Module):
    def __init__(self, input_size, hidden_size):
        super(Feedforward, self).__init__()
        self.input_size = input_size
        self.hidden_size  = hidden_size
        self.fc1 = torch.nn.Linear(self.input_size, self.hidden_size)
        self.fc2 = torch.nn.Linear(self.hidden_size, self.hidden_size)
        self.fc3 = torch.nn.Linear(self.hidden_size, self.hidden_size)
        self.fc4 = torch.nn.Linear(self.hidden_size, self.hidden_size)
        self.relu = torch.nn.ReLU()
        self.fc5 = torch.nn.Linear(self.hidden_size, 1)
        self.sigmoid = torch.nn.Sigmoid()
        self.tanh = torch.nn.Tanh()
    def forward(self, x):
        hidden = self.relu(self.fc1(x))
        hidden = self.relu(self.fc2(hidden))
        hidden = self.relu(self.fc3(hidden))
        hidden = self.relu(self.fc4(hidden))
        output = self.tanh(self.fc5(hidden))

        return output

# model.train()
epoch = 10000
hid_dim_range = [128,256,512]
lr_range = [0.75,0.5,0.1,0.01]

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer
        model = Feedforward(data.shape[1], hid_dim).to(device)
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.SGD(model.parameters(), lr = lr)

        all_loss_train=[]
        all_loss_val=[]
        all_r_train=[]
        all_r_val=[]

        for epoch in range(epoch):
            model.train()
            optimizer.zero_grad()
            # Forward pass
            y_pred = model(X_train.to(device))
            # Compute Loss
            loss = criterion(y_pred.squeeze(), y_train.to(device))

            # Backward pass
            loss.backward()
            optimizer.step()

            all_loss_train.append(loss.item())
            y_pred = y_pred.cpu().detach().numpy().squeeze()
            _, _, r_value_train, _, _ = scipy.stats.linregress(y_pred, y_train)
            all_r_train.append(r_value_train)

            model.eval()
            with torch.no_grad():
                y_pred = model(X_test.to(device))
                # Compute Loss
                loss = criterion(y_pred.squeeze(), y_test.to(device))
                all_loss_val.append(loss.item())

                y_pred = y_pred.cpu().detach().numpy().squeeze()
                slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)
                all_r_val.append(r_value)

                if epoch%500==0:
                    print('Epoch {}, train_loss: {:.4f}, val_loss: {:.4f}, r_value: {:.4f}'.format(epoch,all_loss_train[-1],all_loss_val[-1],r_value))

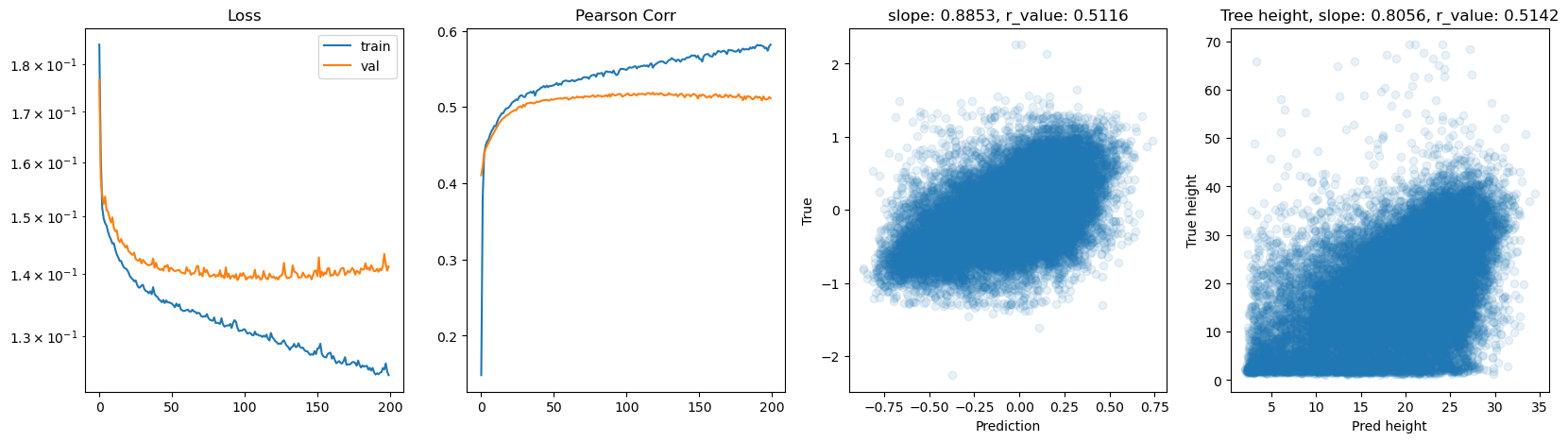

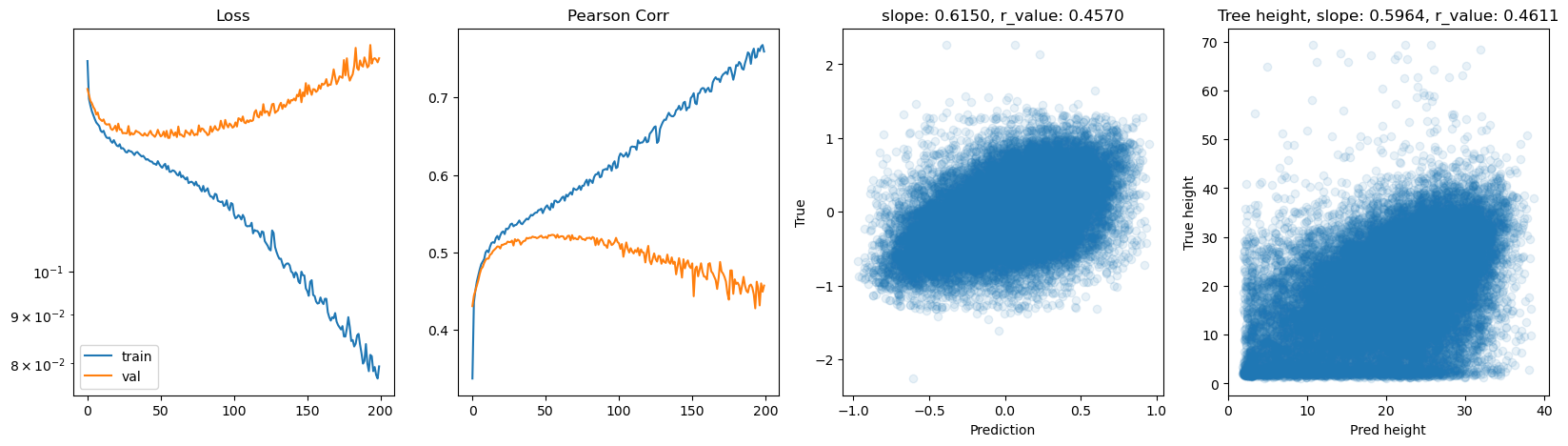

        fig,ax=plt.subplots(1,4,figsize=(20,5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].semilogy()
        ax[0].set_title('Loss')
        ax[0].legend(['train','val'])

        ax[1].plot(all_r_train)
        ax[1].plot(all_r_val)
        ax[1].set_title('Pearson Corr')

        ax[2].scatter(y_pred, y_test.cpu(), alpha=0.1)
        ax[2].set_xlabel('Prediction')
        ax[2].set_ylabel('True')
        ax[2].set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

        # Inverse the transformations back to the tree height
        tree_height_reversed = inverse_normalization(y_test.cpu().reshape(-1, 1), qt, scaler_tree, q99)
        pred_tree_heigth_reversed = inverse_normalization(y_pred.reshape(-1, 1), qt, scaler_tree, q99)
        slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(pred_tree_heigth_reversed, tree_height_reversed)
        ax[3].scatter(pred_tree_heigth_reversed, tree_height_reversed, alpha=0.1)
        ax[3].set_xlabel('Pred height')
        ax[3].set_ylabel('True height')
        ax[3].set_title('Tree height, slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

        plt.show()

hid_dim: 128, lr: 0.75
Deleting previous model
Epoch 0, train_loss: 0.1913, val_loss: 0.1937, r_value: 0.0633
Epoch 500, train_loss: 0.1597, val_loss: 0.1667, r_value: 0.4110
Epoch 1000, train_loss: 0.1577, val_loss: 0.1634, r_value: 0.4276
Epoch 1500, train_loss: 0.1570, val_loss: 0.1617, r_value: 0.4410
Epoch 2000, train_loss: 0.1563, val_loss: 0.1605, r_value: 0.4521
Epoch 2500, train_loss: 0.1550, val_loss: 0.1587, r_value: 0.4618
Epoch 3000, train_loss: 0.1535, val_loss: 0.1571, r_value: 0.4685
Epoch 3500, train_loss: 0.1524, val_loss: 0.1560, r_value: 0.4742
Epoch 4000, train_loss: 0.1518, val_loss: 0.1555, r_value: 0.4786
Epoch 4500, train_loss: 0.1519, val_loss: 0.1569, r_value: 0.4824
Epoch 5000, train_loss: 0.1468, val_loss: 0.1524, r_value: 0.4876
Epoch 5500, train_loss: 0.1497, val_loss: 0.1540, r_value: 0.4814
Epoch 6000, train_loss: 0.1413, val_loss: 0.1475, r_value: 0.4944
Epoch 6500, train_loss: 0.1456, val_loss: 0.1542, r_value: 0.4722
Epoch 7000, train_loss: 0.1475, val_loss: 0.1545, r_value: 0.4812
Epoch 7500, train_loss: 0.1375, val_loss: 0.1429, r_value: 0.5004
Epoch 8000, train_loss: 0.1469, val_loss: 0.1525, r_value: 0.5039
Epoch 8500, train_loss: 0.1457, val_loss: 0.1519, r_value: 0.5026
Epoch 9000, train_loss: 0.1450, val_loss: 0.1512, r_value: 0.5042
Epoch 9500, train_loss: 0.1373, val_loss: 0.1448, r_value: 0.5007

hid_dim: 128, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1927, val_loss: 0.1909, r_value: 0.0507
Epoch 500, train_loss: 0.1555, val_loss: 0.1574, r_value: 0.4403
Epoch 1000, train_loss: 0.1519, val_loss: 0.1550, r_value: 0.4501
Epoch 1500, train_loss: 0.1503, val_loss: 0.1540, r_value: 0.4592
Epoch 2000, train_loss: 0.1486, val_loss: 0.1530, r_value: 0.4664
Epoch 2500, train_loss: 0.1472, val_loss: 0.1519, r_value: 0.4715
Epoch 3000, train_loss: 0.1462, val_loss: 0.1511, r_value: 0.4764
Epoch 3500, train_loss: 0.1452, val_loss: 0.1502, r_value: 0.4814
Epoch 4000, train_loss: 0.1442, val_loss: 0.1494, r_value: 0.4863
Epoch 4500, train_loss: 0.1428, val_loss: 0.1467, r_value: 0.4911
Epoch 5000, train_loss: 0.1416, val_loss: 0.1473, r_value: 0.4955
Epoch 5500, train_loss: 0.1407, val_loss: 0.1456, r_value: 0.4985
Epoch 6000, train_loss: 0.1407, val_loss: 0.1464, r_value: 0.5003
Epoch 6500, train_loss: 0.1395, val_loss: 0.1448, r_value: 0.5010
Epoch 7000, train_loss: 0.1376, val_loss: 0.1428, r_value: 0.4993
Epoch 7500, train_loss: 0.1393, val_loss: 0.1460, r_value: 0.5055
Epoch 8000, train_loss: 0.1379, val_loss: 0.1460, r_value: 0.4875
Epoch 8500, train_loss: 0.1376, val_loss: 0.1436, r_value: 0.5058
Epoch 9000, train_loss: 0.1377, val_loss: 0.1428, r_value: 0.5082
Epoch 9500, train_loss: 0.1371, val_loss: 0.1433, r_value: 0.5073

hid_dim: 128, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1944, val_loss: 0.1936, r_value: 0.0185
Epoch 500, train_loss: 0.1517, val_loss: 0.1549, r_value: 0.4291
Epoch 1000, train_loss: 0.1498, val_loss: 0.1532, r_value: 0.4474
Epoch 1500, train_loss: 0.1486, val_loss: 0.1521, r_value: 0.4530
Epoch 2000, train_loss: 0.1478, val_loss: 0.1513, r_value: 0.4574
Epoch 2500, train_loss: 0.1470, val_loss: 0.1506, r_value: 0.4618
Epoch 3000, train_loss: 0.1463, val_loss: 0.1499, r_value: 0.4661
Epoch 3500, train_loss: 0.1456, val_loss: 0.1494, r_value: 0.4703
Epoch 4000, train_loss: 0.1449, val_loss: 0.1488, r_value: 0.4740
Epoch 4500, train_loss: 0.1442, val_loss: 0.1483, r_value: 0.4771
Epoch 5000, train_loss: 0.1437, val_loss: 0.1478, r_value: 0.4799
Epoch 5500, train_loss: 0.1431, val_loss: 0.1473, r_value: 0.4824
Epoch 6000, train_loss: 0.1426, val_loss: 0.1469, r_value: 0.4847
Epoch 6500, train_loss: 0.1422, val_loss: 0.1465, r_value: 0.4869
Epoch 7000, train_loss: 0.1417, val_loss: 0.1462, r_value: 0.4892
Epoch 7500, train_loss: 0.1413, val_loss: 0.1458, r_value: 0.4915
Epoch 8000, train_loss: 0.1409, val_loss: 0.1455, r_value: 0.4937
Epoch 8500, train_loss: 0.1404, val_loss: 0.1451, r_value: 0.4956
Epoch 9000, train_loss: 0.1400, val_loss: 0.1448, r_value: 0.4974
Epoch 9500, train_loss: 0.1396, val_loss: 0.1444, r_value: 0.4992

hid_dim: 128, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1958, val_loss: 0.1982, r_value: -0.1142
Epoch 500, train_loss: 0.1867, val_loss: 0.1889, r_value: 0.2522
Epoch 1000, train_loss: 0.1857, val_loss: 0.1880, r_value: 0.3247
Epoch 1500, train_loss: 0.1842, val_loss: 0.1865, r_value: 0.3577
Epoch 2000, train_loss: 0.1815, val_loss: 0.1838, r_value: 0.3784
Epoch 2500, train_loss: 0.1763, val_loss: 0.1788, r_value: 0.3911
Epoch 3000, train_loss: 0.1677, val_loss: 0.1704, r_value: 0.4011
Epoch 3500, train_loss: 0.1589, val_loss: 0.1618, r_value: 0.4088
Epoch 4000, train_loss: 0.1547, val_loss: 0.1577, r_value: 0.4155
Epoch 4500, train_loss: 0.1532, val_loss: 0.1563, r_value: 0.4206
Epoch 5000, train_loss: 0.1524, val_loss: 0.1556, r_value: 0.4244
Epoch 5500, train_loss: 0.1519, val_loss: 0.1551, r_value: 0.4275
Epoch 6000, train_loss: 0.1514, val_loss: 0.1547, r_value: 0.4301
Epoch 6500, train_loss: 0.1510, val_loss: 0.1543, r_value: 0.4325
Epoch 7000, train_loss: 0.1506, val_loss: 0.1539, r_value: 0.4346
Epoch 7500, train_loss: 0.1503, val_loss: 0.1536, r_value: 0.4365
Epoch 8000, train_loss: 0.1500, val_loss: 0.1533, r_value: 0.4382
Epoch 8500, train_loss: 0.1498, val_loss: 0.1531, r_value: 0.4397
Epoch 9000, train_loss: 0.1495, val_loss: 0.1529, r_value: 0.4411
Epoch 9500, train_loss: 0.1493, val_loss: 0.1526, r_value: 0.4424

hid_dim: 256, lr: 0.75
Deleting previous model
Epoch 0, train_loss: 0.1926, val_loss: 0.1972, r_value: 0.1144
Epoch 500, train_loss: 0.1599, val_loss: 0.1659, r_value: 0.4216
Epoch 1000, train_loss: 0.1579, val_loss: 0.1624, r_value: 0.4433
Epoch 1500, train_loss: 0.1561, val_loss: 0.1597, r_value: 0.4586
Epoch 2000, train_loss: 0.1545, val_loss: 0.1574, r_value: 0.4696
Epoch 2500, train_loss: 0.1522, val_loss: 0.1570, r_value: 0.4753
Epoch 3000, train_loss: 0.1510, val_loss: 0.1552, r_value: 0.4811
Epoch 3500, train_loss: 0.1513, val_loss: 0.1565, r_value: 0.4832
Epoch 4000, train_loss: 0.1483, val_loss: 0.1534, r_value: 0.4871
Epoch 4500, train_loss: 0.1486, val_loss: 0.1542, r_value: 0.4892
Epoch 5000, train_loss: 0.1467, val_loss: 0.1524, r_value: 0.4942
Epoch 5500, train_loss: 0.1531, val_loss: 0.1433, r_value: 0.4959
Epoch 6000, train_loss: 0.1439, val_loss: 0.1480, r_value: 0.5007
Epoch 6500, train_loss: 0.1388, val_loss: 0.1462, r_value: 0.5025
Epoch 7000, train_loss: 0.1424, val_loss: 0.1496, r_value: 0.5001
Epoch 7500, train_loss: 0.1357, val_loss: 0.1418, r_value: 0.5062
Epoch 8000, train_loss: 0.1471, val_loss: 0.1425, r_value: 0.5036
Epoch 8500, train_loss: 0.1459, val_loss: 0.1525, r_value: 0.5055
Epoch 9000, train_loss: 0.1390, val_loss: 0.1482, r_value: 0.5039
Epoch 9500, train_loss: 0.1404, val_loss: 0.1483, r_value: 0.5080

hid_dim: 256, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1872, val_loss: 0.1892, r_value: 0.3429
Epoch 500, train_loss: 0.1542, val_loss: 0.1564, r_value: 0.4438
Epoch 1000, train_loss: 0.1512, val_loss: 0.1543, r_value: 0.4561
Epoch 1500, train_loss: 0.1485, val_loss: 0.1529, r_value: 0.4677
Epoch 2000, train_loss: 0.1463, val_loss: 0.1512, r_value: 0.4756
Epoch 2500, train_loss: 0.1451, val_loss: 0.1489, r_value: 0.4827
Epoch 3000, train_loss: 0.1425, val_loss: 0.1477, r_value: 0.4925
Epoch 3500, train_loss: 0.1397, val_loss: 0.1446, r_value: 0.4909
Epoch 4000, train_loss: 0.1383, val_loss: 0.1437, r_value: 0.4964
Epoch 4500, train_loss: 0.1409, val_loss: 0.1462, r_value: 0.5037
Epoch 5000, train_loss: 0.1380, val_loss: 0.1424, r_value: 0.5044
Epoch 5500, train_loss: 0.1391, val_loss: 0.1443, r_value: 0.5017
Epoch 6000, train_loss: 0.1391, val_loss: 0.1452, r_value: 0.5091
Epoch 6500, train_loss: 0.1392, val_loss: 0.1456, r_value: 0.5102
Epoch 7000, train_loss: 0.1372, val_loss: 0.1436, r_value: 0.5118
Epoch 7500, train_loss: 0.1378, val_loss: 0.1448, r_value: 0.5129
Epoch 8000, train_loss: 0.1358, val_loss: 0.1410, r_value: 0.5089
Epoch 8500, train_loss: 0.1402, val_loss: 0.1433, r_value: 0.5009
Epoch 9000, train_loss: 0.1373, val_loss: 0.1438, r_value: 0.5140
Epoch 9500, train_loss: 0.1341, val_loss: 0.1425, r_value: 0.5133

hid_dim: 256, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1894, val_loss: 0.1906, r_value: -0.1758
Epoch 500, train_loss: 0.1512, val_loss: 0.1544, r_value: 0.4400
Epoch 1000, train_loss: 0.1491, val_loss: 0.1526, r_value: 0.4494
Epoch 1500, train_loss: 0.1480, val_loss: 0.1516, r_value: 0.4552
Epoch 2000, train_loss: 0.1470, val_loss: 0.1508, r_value: 0.4604
Epoch 2500, train_loss: 0.1462, val_loss: 0.1500, r_value: 0.4653
Epoch 3000, train_loss: 0.1453, val_loss: 0.1493, r_value: 0.4702
Epoch 3500, train_loss: 0.1445, val_loss: 0.1486, r_value: 0.4746
Epoch 4000, train_loss: 0.1438, val_loss: 0.1480, r_value: 0.4786
Epoch 4500, train_loss: 0.1431, val_loss: 0.1474, r_value: 0.4822
Epoch 5000, train_loss: 0.1424, val_loss: 0.1468, r_value: 0.4856
Epoch 5500, train_loss: 0.1418, val_loss: 0.1462, r_value: 0.4887
Epoch 6000, train_loss: 0.1413, val_loss: 0.1458, r_value: 0.4917
Epoch 6500, train_loss: 0.1407, val_loss: 0.1453, r_value: 0.4945
Epoch 7000, train_loss: 0.1402, val_loss: 0.1449, r_value: 0.4969
Epoch 7500, train_loss: 0.1398, val_loss: 0.1445, r_value: 0.4992
Epoch 8000, train_loss: 0.1392, val_loss: 0.1441, r_value: 0.5013
Epoch 8500, train_loss: 0.1388, val_loss: 0.1437, r_value: 0.5031
Epoch 9000, train_loss: 0.1384, val_loss: 0.1434, r_value: 0.5046
Epoch 9500, train_loss: 0.1381, val_loss: 0.1433, r_value: 0.5059

hid_dim: 256, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1893, val_loss: 0.1911, r_value: 0.0666
Epoch 500, train_loss: 0.1849, val_loss: 0.1872, r_value: 0.4003
Epoch 1000, train_loss: 0.1812, val_loss: 0.1836, r_value: 0.4107
Epoch 1500, train_loss: 0.1736, val_loss: 0.1761, r_value: 0.4155
Epoch 2000, train_loss: 0.1613, val_loss: 0.1641, r_value: 0.4214
Epoch 2500, train_loss: 0.1535, val_loss: 0.1565, r_value: 0.4275
Epoch 3000, train_loss: 0.1514, val_loss: 0.1545, r_value: 0.4324
Epoch 3500, train_loss: 0.1507, val_loss: 0.1538, r_value: 0.4354
Epoch 4000, train_loss: 0.1502, val_loss: 0.1534, r_value: 0.4378
Epoch 4500, train_loss: 0.1499, val_loss: 0.1531, r_value: 0.4398
Epoch 5000, train_loss: 0.1495, val_loss: 0.1528, r_value: 0.4416
Epoch 5500, train_loss: 0.1492, val_loss: 0.1525, r_value: 0.4434
Epoch 6000, train_loss: 0.1489, val_loss: 0.1522, r_value: 0.4449
Epoch 6500, train_loss: 0.1487, val_loss: 0.1520, r_value: 0.4463
Epoch 7000, train_loss: 0.1484, val_loss: 0.1518, r_value: 0.4477
Epoch 7500, train_loss: 0.1482, val_loss: 0.1515, r_value: 0.4490
Epoch 8000, train_loss: 0.1480, val_loss: 0.1513, r_value: 0.4502
Epoch 8500, train_loss: 0.1478, val_loss: 0.1511, r_value: 0.4513
Epoch 9000, train_loss: 0.1476, val_loss: 0.1510, r_value: 0.4523
Epoch 9500, train_loss: 0.1473, val_loss: 0.1507, r_value: 0.4536

hid_dim: 512, lr: 0.75
Deleting previous model
Epoch 0, train_loss: 0.1911, val_loss: 0.1989, r_value: 0.1924
Epoch 500, train_loss: 0.1591, val_loss: 0.1659, r_value: 0.4180
Epoch 1000, train_loss: 0.1572, val_loss: 0.1622, r_value: 0.4439
Epoch 1500, train_loss: 0.1542, val_loss: 0.1583, r_value: 0.4637
Epoch 2000, train_loss: 0.1511, val_loss: 0.1550, r_value: 0.4734
Epoch 2500, train_loss: 0.1489, val_loss: 0.1531, r_value: 0.4817
Epoch 3000, train_loss: 0.1495, val_loss: 0.1541, r_value: 0.4831
Epoch 3500, train_loss: 0.1482, val_loss: 0.1527, r_value: 0.4892
Epoch 4000, train_loss: 0.1474, val_loss: 0.1504, r_value: 0.4873
Epoch 4500, train_loss: 0.1439, val_loss: 0.1491, r_value: 0.4986
Epoch 5000, train_loss: 0.2298, val_loss: 0.1891, r_value: 0.4408
Epoch 5500, train_loss: 0.1429, val_loss: 0.1466, r_value: 0.5035
Epoch 6000, train_loss: 0.1417, val_loss: 0.1482, r_value: 0.5068
Epoch 6500, train_loss: 0.1392, val_loss: 0.1470, r_value: 0.5058
Epoch 7000, train_loss: 0.1375, val_loss: 0.1445, r_value: 0.5086
Epoch 7500, train_loss: 0.1404, val_loss: 0.1468, r_value: 0.5074
Epoch 8000, train_loss: 0.1459, val_loss: 0.1504, r_value: 0.4987
Epoch 8500, train_loss: 0.1418, val_loss: 0.1501, r_value: 0.4756
Epoch 9000, train_loss: 0.1341, val_loss: 0.1428, r_value: 0.5077
Epoch 9500, train_loss: 0.1387, val_loss: 0.1477, r_value: 0.5128

hid_dim: 512, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1882, val_loss: 0.1895, r_value: 0.2176
Epoch 500, train_loss: 0.1522, val_loss: 0.1568, r_value: 0.4402
Epoch 1000, train_loss: 0.1492, val_loss: 0.1526, r_value: 0.4652
Epoch 1500, train_loss: 0.1430, val_loss: 0.1475, r_value: 0.4776
Epoch 2000, train_loss: 0.1437, val_loss: 0.1493, r_value: 0.4893
Epoch 2500, train_loss: 0.1472, val_loss: 0.1462, r_value: 0.4957
Epoch 3000, train_loss: 0.1433, val_loss: 0.1459, r_value: 0.4863
Epoch 3500, train_loss: 0.1407, val_loss: 0.1454, r_value: 0.5034
Epoch 4000, train_loss: 0.1369, val_loss: 0.1432, r_value: 0.5059
Epoch 4500, train_loss: 0.1402, val_loss: 0.1457, r_value: 0.5102
Epoch 5000, train_loss: 0.1373, val_loss: 0.1431, r_value: 0.5101
Epoch 5500, train_loss: 0.1368, val_loss: 0.1424, r_value: 0.5108
Epoch 6000, train_loss: 0.1379, val_loss: 0.1443, r_value: 0.5139
Epoch 6500, train_loss: 0.1364, val_loss: 0.1445, r_value: 0.5165
Epoch 7000, train_loss: 0.1356, val_loss: 0.1413, r_value: 0.5093
Epoch 7500, train_loss: 0.1352, val_loss: 0.1425, r_value: 0.5180
Epoch 8000, train_loss: 0.1352, val_loss: 0.1432, r_value: 0.5182
Epoch 8500, train_loss: 0.1351, val_loss: 0.1437, r_value: 0.5193
Epoch 9000, train_loss: 0.1314, val_loss: 0.1408, r_value: 0.5205
Epoch 9500, train_loss: 0.1323, val_loss: 0.1412, r_value: 0.5208

hid_dim: 512, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.1912, val_loss: 0.1910, r_value: 0.0375
Epoch 500, train_loss: 0.1503, val_loss: 0.1536, r_value: 0.4428
Epoch 1000, train_loss: 0.1483, val_loss: 0.1517, r_value: 0.4535
Epoch 1500, train_loss: 0.1469, val_loss: 0.1504, r_value: 0.4608
Epoch 2000, train_loss: 0.1457, val_loss: 0.1493, r_value: 0.4672
Epoch 2500, train_loss: 0.1447, val_loss: 0.1483, r_value: 0.4731
Epoch 3000, train_loss: 0.1437, val_loss: 0.1474, r_value: 0.4785
Epoch 3500, train_loss: 0.1429, val_loss: 0.1467, r_value: 0.4831
Epoch 4000, train_loss: 0.1421, val_loss: 0.1460, r_value: 0.4873
Epoch 4500, train_loss: 0.1413, val_loss: 0.1453, r_value: 0.4912
Epoch 5000, train_loss: 0.1405, val_loss: 0.1446, r_value: 0.4949
Epoch 5500, train_loss: 0.1398, val_loss: 0.1440, r_value: 0.4983
Epoch 6000, train_loss: 0.1392, val_loss: 0.1435, r_value: 0.5013
Epoch 6500, train_loss: 0.1385, val_loss: 0.1429, r_value: 0.5039
Epoch 7000, train_loss: 0.1380, val_loss: 0.1425, r_value: 0.5062
Epoch 7500, train_loss: 0.1375, val_loss: 0.1421, r_value: 0.5080
Epoch 8000, train_loss: 0.1370, val_loss: 0.1418, r_value: 0.5097
Epoch 8500, train_loss: 0.1366, val_loss: 0.1415, r_value: 0.5110
Epoch 9000, train_loss: 0.1362, val_loss: 0.1412, r_value: 0.5123
Epoch 9500, train_loss: 0.1359, val_loss: 0.1410, r_value: 0.5133

hid_dim: 512, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.1910, val_loss: 0.1926, r_value: -0.1958
Epoch 500, train_loss: 0.1840, val_loss: 0.1863, r_value: 0.4082
Epoch 1000, train_loss: 0.1775, val_loss: 0.1799, r_value: 0.4083
Epoch 1500, train_loss: 0.1648, val_loss: 0.1674, r_value: 0.4116
Epoch 2000, train_loss: 0.1549, val_loss: 0.1578, r_value: 0.4197
Epoch 2500, train_loss: 0.1522, val_loss: 0.1552, r_value: 0.4277
Epoch 3000, train_loss: 0.1512, val_loss: 0.1543, r_value: 0.4327
Epoch 3500, train_loss: 0.1506, val_loss: 0.1537, r_value: 0.4363
Epoch 4000, train_loss: 0.1500, val_loss: 0.1532, r_value: 0.4392
Epoch 4500, train_loss: 0.1496, val_loss: 0.1528, r_value: 0.4418
Epoch 5000, train_loss: 0.1492, val_loss: 0.1524, r_value: 0.4439
Epoch 5500, train_loss: 0.1488, val_loss: 0.1521, r_value: 0.4457
Epoch 6000, train_loss: 0.1485, val_loss: 0.1518, r_value: 0.4474
Epoch 6500, train_loss: 0.1483, val_loss: 0.1516, r_value: 0.4489
Epoch 7000, train_loss: 0.1480, val_loss: 0.1513, r_value: 0.4502
Epoch 7500, train_loss: 0.1478, val_loss: 0.1511, r_value: 0.4514
Epoch 8000, train_loss: 0.1476, val_loss: 0.1509, r_value: 0.4526
Epoch 8500, train_loss: 0.1474, val_loss: 0.1507, r_value: 0.4536
Epoch 9000, train_loss: 0.1472, val_loss: 0.1506, r_value: 0.4546
Epoch 9500, train_loss: 0.1470, val_loss: 0.1504, r_value: 0.4556

Let’s try using batches and switch to Adam optimizer

from torch.utils.data import TensorDataset, DataLoader
import os
# Hyperparams
batch_size = 5000  # requested
num_epochs = 200  # same semantics as before
hid_dim_range = [128, 256, 512]
# Adam works best with smaller lrs; consider tuning like [1e-3, 5e-4, 1e-4]
lr_range = [1e-3, 5e-4, 1e-4]

# DataLoaders with performance knobs
# - num_workers ~ half your CPU cores
# - pin_memory True to accelerate H2D when using non_blocking .to(...)
# - persistent_workers keeps worker processes across epochs
# - prefetch_factor helps overlap data prep with GPU work
# - drop_last avoids tiny last batch that can introduce variance
train_ds = TensorDataset(X_train, y_train)
val_ds = TensorDataset(X_test, y_test)
train_loader = DataLoader(
    train_ds,
    batch_size=batch_size,
    shuffle=True,
    num_workers=4,
    pin_memory=True,
    drop_last=False,
)
val_loader = DataLoader(
    val_ds,
    batch_size=batch_size,
    shuffle=False,
    num_workers=4,
    pin_memory=True,
    drop_last=False,
)

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print(f'\nhid_dim: {hid_dim}, lr: {lr}')
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer

        model = Feedforward(data.shape[1], hid_dim).to(device)
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.Adam(model.parameters(), lr=lr)

        all_loss_train, all_loss_val = [], []
        all_r_train, all_r_val = [], []

        for epoch in range(num_epochs):
            model.train()
            epoch_loss = 0.0

            # Accumulate predictions/targets only once per epoch (post-batch) to compute Pearson r
            preds_train_all = []
            targets_train_all = []

            for xb, yb in train_loader:
                xb = xb.to(device, non_blocking=True)
                yb = yb.to(device, non_blocking=True)

                optimizer.zero_grad(set_to_none=True)  # more efficient zeroing
                y_pred_b = model(xb)
                loss = criterion(y_pred_b.squeeze(), yb)
                loss.backward()
                optimizer.step()

                # Keep running sum of loss (on CPU scalar)
                epoch_loss += loss.item() * xb.size(0)

                # Collect for train metrics once per epoch (avoid per-batch CPU conversions)
                preds_train_all.append(y_pred_b.detach().cpu())
                targets_train_all.append(yb.detach().cpu())

            # End of epoch: compute train metrics
            y_pred_train = torch.cat(preds_train_all, dim=0).numpy().squeeze()
            y_true_train = torch.cat(targets_train_all, dim=0).numpy().squeeze()
            mean_train_loss = epoch_loss / len(train_ds)
            all_loss_train.append(mean_train_loss)

            try:
                _, _, r_value_train, _, _ = scipy.stats.linregress(y_pred_train, y_true_train)
            except Exception:
                r_value_train = np.nan
            all_r_train.append(r_value_train)

            # Validation
            model.eval()
            val_loss_accum = 0.0
            preds_val_all = []
            targets_val_all = []
            with torch.no_grad():
                for xb, yb in val_loader:
                    xb = xb.to(device, non_blocking=True)
                    yb = yb.to(device, non_blocking=True)
                    y_pred_b = model(xb)
                    loss_b = criterion(y_pred_b.squeeze(), yb)
                    val_loss_accum += loss_b.item() * xb.size(0)
                    preds_val_all.append(y_pred_b.detach().cpu())
                    targets_val_all.append(yb.detach().cpu())

            y_pred_val = torch.cat(preds_val_all, dim=0).numpy().squeeze()
            y_true_val = torch.cat(targets_val_all, dim=0).numpy().squeeze()
            mean_val_loss = val_loss_accum / len(val_ds)
            all_loss_val.append(mean_val_loss)

            try:
                slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred_val, y_true_val)
            except Exception:
                r_value = np.nan
            all_r_val.append(r_value)

            # Throttle logging
            if epoch % 10 == 0:
                print(f'Epoch {epoch}, train_loss: {mean_train_loss:.4f}, val_loss: {mean_val_loss:.4f}, r_value: {r_value:.4f}')

        # Plotting (uses last epoch's arrays)
        fig, ax = plt.subplots(1, 4, figsize=(20, 5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].semilogy()
        ax[0].set_title('Loss')
        ax[0].legend(['train', 'val'])

        ax[1].plot(all_r_train)
        ax[1].plot(all_r_val)
        ax[1].set_title('Pearson Corr')

        ax[2].scatter(y_pred_val, y_true_val, alpha=0.1)
        ax[2].set_xlabel('Prediction')
        ax[2].set_ylabel('True')
        ax[2].set_title(f'slope: {slope:.4f}, r_value: {r_value:.4f}')

        # Inverse transformation on validation
        tree_height_reversed = inverse_normalization(y_true_val.reshape(-1, 1), qt, scaler_tree, q99)
        pred_tree_heigth_reversed = inverse_normalization(y_pred_val.reshape(-1, 1), qt, scaler_tree, q99)
        slope2, intercept2, r_value2, p_value2, std_err2 = scipy.stats.linregress(pred_tree_heigth_reversed, tree_height_reversed)
        ax[3].scatter(pred_tree_heigth_reversed, tree_height_reversed, alpha=0.1)
        ax[3].set_xlabel('Pred height')
        ax[3].set_ylabel('True height')
        ax[3].set_title(f'Tree height, slope: {slope2:.4f}, r_value: {r_value2:.4f}')

        plt.show()

hid_dim: 128, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.1842, val_loss: 0.1767, r_value: 0.4105
Epoch 10, train_loss: 0.1452, val_loss: 0.1479, r_value: 0.4712
Epoch 20, train_loss: 0.1403, val_loss: 0.1439, r_value: 0.4928
Epoch 30, train_loss: 0.1382, val_loss: 0.1424, r_value: 0.5009
Epoch 40, train_loss: 0.1362, val_loss: 0.1411, r_value: 0.5069
Epoch 50, train_loss: 0.1351, val_loss: 0.1409, r_value: 0.5100
Epoch 60, train_loss: 0.1341, val_loss: 0.1411, r_value: 0.5097
Epoch 70, train_loss: 0.1331, val_loss: 0.1401, r_value: 0.5120
Epoch 80, train_loss: 0.1320, val_loss: 0.1395, r_value: 0.5156
Epoch 90, train_loss: 0.1319, val_loss: 0.1392, r_value: 0.5172
Epoch 100, train_loss: 0.1310, val_loss: 0.1397, r_value: 0.5171
Epoch 110, train_loss: 0.1300, val_loss: 0.1395, r_value: 0.5173
Epoch 120, train_loss: 0.1295, val_loss: 0.1396, r_value: 0.5174
Epoch 130, train_loss: 0.1283, val_loss: 0.1393, r_value: 0.5167
Epoch 140, train_loss: 0.1282, val_loss: 0.1402, r_value: 0.5129
Epoch 150, train_loss: 0.1281, val_loss: 0.1397, r_value: 0.5160
Epoch 160, train_loss: 0.1265, val_loss: 0.1398, r_value: 0.5154
Epoch 170, train_loss: 0.1256, val_loss: 0.1401, r_value: 0.5130
Epoch 180, train_loss: 0.1252, val_loss: 0.1409, r_value: 0.5089
Epoch 190, train_loss: 0.1241, val_loss: 0.1405, r_value: 0.5120

hid_dim: 128, lr: 0.0005
Deleting previous model
Epoch 0, train_loss: 0.1879, val_loss: 0.1863, r_value: 0.3873
Epoch 10, train_loss: 0.1453, val_loss: 0.1490, r_value: 0.4643
Epoch 20, train_loss: 0.1408, val_loss: 0.1450, r_value: 0.4863
Epoch 30, train_loss: 0.1385, val_loss: 0.1428, r_value: 0.4975
Epoch 40, train_loss: 0.1369, val_loss: 0.1419, r_value: 0.5045
Epoch 50, train_loss: 0.1362, val_loss: 0.1412, r_value: 0.5090
Epoch 60, train_loss: 0.1350, val_loss: 0.1403, r_value: 0.5111
Epoch 70, train_loss: 0.1344, val_loss: 0.1406, r_value: 0.5114
Epoch 80, train_loss: 0.1337, val_loss: 0.1397, r_value: 0.5141
Epoch 90, train_loss: 0.1332, val_loss: 0.1396, r_value: 0.5149
Epoch 100, train_loss: 0.1325, val_loss: 0.1393, r_value: 0.5157
Epoch 110, train_loss: 0.1324, val_loss: 0.1392, r_value: 0.5168
Epoch 120, train_loss: 0.1319, val_loss: 0.1393, r_value: 0.5163
Epoch 130, train_loss: 0.1313, val_loss: 0.1389, r_value: 0.5186
Epoch 140, train_loss: 0.1307, val_loss: 0.1390, r_value: 0.5179
Epoch 150, train_loss: 0.1303, val_loss: 0.1397, r_value: 0.5154
Epoch 160, train_loss: 0.1300, val_loss: 0.1389, r_value: 0.5191
Epoch 170, train_loss: 0.1296, val_loss: 0.1394, r_value: 0.5188
Epoch 180, train_loss: 0.1294, val_loss: 0.1398, r_value: 0.5192
Epoch 190, train_loss: 0.1296, val_loss: 0.1406, r_value: 0.5184

hid_dim: 128, lr: 0.0001
Deleting previous model
Epoch 0, train_loss: 0.1880, val_loss: 0.1885, r_value: 0.3209
Epoch 10, train_loss: 0.1500, val_loss: 0.1529, r_value: 0.4416
Epoch 20, train_loss: 0.1472, val_loss: 0.1504, r_value: 0.4555
Epoch 30, train_loss: 0.1456, val_loss: 0.1490, r_value: 0.4640
Epoch 40, train_loss: 0.1436, val_loss: 0.1472, r_value: 0.4741
Epoch 50, train_loss: 0.1417, val_loss: 0.1459, r_value: 0.4833
Epoch 60, train_loss: 0.1402, val_loss: 0.1443, r_value: 0.4896
Epoch 70, train_loss: 0.1391, val_loss: 0.1436, r_value: 0.4944
Epoch 80, train_loss: 0.1382, val_loss: 0.1428, r_value: 0.4986
Epoch 90, train_loss: 0.1374, val_loss: 0.1421, r_value: 0.5017
Epoch 100, train_loss: 0.1379, val_loss: 0.1417, r_value: 0.5039
Epoch 110, train_loss: 0.1364, val_loss: 0.1414, r_value: 0.5054
Epoch 120, train_loss: 0.1359, val_loss: 0.1410, r_value: 0.5071
Epoch 130, train_loss: 0.1355, val_loss: 0.1408, r_value: 0.5084
Epoch 140, train_loss: 0.1353, val_loss: 0.1409, r_value: 0.5093
Epoch 150, train_loss: 0.1350, val_loss: 0.1406, r_value: 0.5102
Epoch 160, train_loss: 0.1349, val_loss: 0.1402, r_value: 0.5110
Epoch 170, train_loss: 0.1345, val_loss: 0.1403, r_value: 0.5116
Epoch 180, train_loss: 0.1343, val_loss: 0.1401, r_value: 0.5121
Epoch 190, train_loss: 0.1340, val_loss: 0.1399, r_value: 0.5126

hid_dim: 256, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.1685, val_loss: 0.1566, r_value: 0.4320
Epoch 10, train_loss: 0.1414, val_loss: 0.1453, r_value: 0.4874
Epoch 20, train_loss: 0.1373, val_loss: 0.1420, r_value: 0.5090
Epoch 30, train_loss: 0.1349, val_loss: 0.1412, r_value: 0.5133
Epoch 40, train_loss: 0.1310, val_loss: 0.1385, r_value: 0.5212
Epoch 50, train_loss: 0.1297, val_loss: 0.1385, r_value: 0.5217
Epoch 60, train_loss: 0.1277, val_loss: 0.1392, r_value: 0.5195
Epoch 70, train_loss: 0.1264, val_loss: 0.1428, r_value: 0.5146
Epoch 80, train_loss: 0.1249, val_loss: 0.1413, r_value: 0.5153
Epoch 90, train_loss: 0.1229, val_loss: 0.1403, r_value: 0.5156
Epoch 100, train_loss: 0.1231, val_loss: 0.1410, r_value: 0.5103
Epoch 110, train_loss: 0.1171, val_loss: 0.1423, r_value: 0.5047
Epoch 120, train_loss: 0.1180, val_loss: 0.1436, r_value: 0.4961
Epoch 130, train_loss: 0.1126, val_loss: 0.1462, r_value: 0.5055
Epoch 140, train_loss: 0.1102, val_loss: 0.1477, r_value: 0.4805
Epoch 150, train_loss: 0.1072, val_loss: 0.1498, r_value: 0.4890
Epoch 160, train_loss: 0.1041, val_loss: 0.1514, r_value: 0.4743
Epoch 170, train_loss: 0.1035, val_loss: 0.1541, r_value: 0.4574
Epoch 180, train_loss: 0.1014, val_loss: 0.1558, r_value: 0.4816
Epoch 190, train_loss: 0.0984, val_loss: 0.1556, r_value: 0.4631

hid_dim: 256, lr: 0.0005
Deleting previous model
Epoch 0, train_loss: 0.1760, val_loss: 0.1597, r_value: 0.4158
Epoch 10, train_loss: 0.1425, val_loss: 0.1466, r_value: 0.4795
Epoch 20, train_loss: 0.1388, val_loss: 0.1427, r_value: 0.4984
Epoch 30, train_loss: 0.1357, val_loss: 0.1417, r_value: 0.5081
Epoch 40, train_loss: 0.1349, val_loss: 0.1406, r_value: 0.5099
Epoch 50, train_loss: 0.1322, val_loss: 0.1395, r_value: 0.5161
Epoch 60, train_loss: 0.1311, val_loss: 0.1390, r_value: 0.5190
Epoch 70, train_loss: 0.1299, val_loss: 0.1395, r_value: 0.5161
Epoch 80, train_loss: 0.1286, val_loss: 0.1388, r_value: 0.5189
Epoch 90, train_loss: 0.1279, val_loss: 0.1389, r_value: 0.5183
Epoch 100, train_loss: 0.1268, val_loss: 0.1389, r_value: 0.5206
Epoch 110, train_loss: 0.1266, val_loss: 0.1397, r_value: 0.5160
Epoch 120, train_loss: 0.1250, val_loss: 0.1397, r_value: 0.5156
Epoch 130, train_loss: 0.1227, val_loss: 0.1403, r_value: 0.5159
Epoch 140, train_loss: 0.1215, val_loss: 0.1403, r_value: 0.5149
Epoch 150, train_loss: 0.1200, val_loss: 0.1419, r_value: 0.5049
Epoch 160, train_loss: 0.1187, val_loss: 0.1418, r_value: 0.5094
Epoch 170, train_loss: 0.1181, val_loss: 0.1421, r_value: 0.5079
Epoch 180, train_loss: 0.1183, val_loss: 0.1438, r_value: 0.5025
Epoch 190, train_loss: 0.1154, val_loss: 0.1434, r_value: 0.5026

hid_dim: 256, lr: 0.0001
Deleting previous model
Epoch 0, train_loss: 0.1874, val_loss: 0.1875, r_value: 0.3724
Epoch 10, train_loss: 0.1476, val_loss: 0.1509, r_value: 0.4533
Epoch 20, train_loss: 0.1447, val_loss: 0.1481, r_value: 0.4690
Epoch 30, train_loss: 0.1421, val_loss: 0.1463, r_value: 0.4816
Epoch 40, train_loss: 0.1400, val_loss: 0.1442, r_value: 0.4905
Epoch 50, train_loss: 0.1385, val_loss: 0.1432, r_value: 0.4967
Epoch 60, train_loss: 0.1372, val_loss: 0.1423, r_value: 0.5018
Epoch 70, train_loss: 0.1362, val_loss: 0.1415, r_value: 0.5060
Epoch 80, train_loss: 0.1352, val_loss: 0.1408, r_value: 0.5088
Epoch 90, train_loss: 0.1350, val_loss: 0.1405, r_value: 0.5115
Epoch 100, train_loss: 0.1337, val_loss: 0.1400, r_value: 0.5135
Epoch 110, train_loss: 0.1330, val_loss: 0.1395, r_value: 0.5146
Epoch 120, train_loss: 0.1330, val_loss: 0.1398, r_value: 0.5153
Epoch 130, train_loss: 0.1320, val_loss: 0.1396, r_value: 0.5167
Epoch 140, train_loss: 0.1316, val_loss: 0.1392, r_value: 0.5176
Epoch 150, train_loss: 0.1315, val_loss: 0.1388, r_value: 0.5185
Epoch 160, train_loss: 0.1309, val_loss: 0.1388, r_value: 0.5188
Epoch 170, train_loss: 0.1304, val_loss: 0.1388, r_value: 0.5193
Epoch 180, train_loss: 0.1298, val_loss: 0.1386, r_value: 0.5195
Epoch 190, train_loss: 0.1294, val_loss: 0.1392, r_value: 0.5197

hid_dim: 512, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.1709, val_loss: 0.1582, r_value: 0.4272
Epoch 10, train_loss: 0.1395, val_loss: 0.1447, r_value: 0.4949
Epoch 20, train_loss: 0.1354, val_loss: 0.1402, r_value: 0.5125
Epoch 30, train_loss: 0.1327, val_loss: 0.1392, r_value: 0.5179
Epoch 40, train_loss: 0.1300, val_loss: 0.1407, r_value: 0.5178
Epoch 50, train_loss: 0.1259, val_loss: 0.1395, r_value: 0.5182
Epoch 60, train_loss: 0.1219, val_loss: 0.1397, r_value: 0.5174
Epoch 70, train_loss: 0.1178, val_loss: 0.1418, r_value: 0.5143
Epoch 80, train_loss: 0.1091, val_loss: 0.1471, r_value: 0.5045
Epoch 90, train_loss: 0.1010, val_loss: 0.1555, r_value: 0.4833
Epoch 100, train_loss: 0.0947, val_loss: 0.1550, r_value: 0.4711
Epoch 110, train_loss: 0.0843, val_loss: 0.1636, r_value: 0.4554
Epoch 120, train_loss: 0.0760, val_loss: 0.1672, r_value: 0.4506
Epoch 130, train_loss: 0.0707, val_loss: 0.1753, r_value: 0.4535
Epoch 140, train_loss: 0.0662, val_loss: 0.1811, r_value: 0.4236
Epoch 150, train_loss: 0.0580, val_loss: 0.1828, r_value: 0.4076
Epoch 160, train_loss: 0.0540, val_loss: 0.1893, r_value: 0.4153
Epoch 170, train_loss: 0.0549, val_loss: 0.1959, r_value: 0.3891
Epoch 180, train_loss: 0.0443, val_loss: 0.1964, r_value: 0.4049
Epoch 190, train_loss: 0.0418, val_loss: 0.1994, r_value: 0.3902

hid_dim: 512, lr: 0.0005
Deleting previous model
Epoch 0, train_loss: 0.1666, val_loss: 0.1557, r_value: 0.4304
Epoch 10, train_loss: 0.1402, val_loss: 0.1440, r_value: 0.4919
Epoch 20, train_loss: 0.1357, val_loss: 0.1405, r_value: 0.5096
Epoch 30, train_loss: 0.1338, val_loss: 0.1400, r_value: 0.5143
Epoch 40, train_loss: 0.1311, val_loss: 0.1392, r_value: 0.5185
Epoch 50, train_loss: 0.1291, val_loss: 0.1388, r_value: 0.5201
Epoch 60, train_loss: 0.1272, val_loss: 0.1401, r_value: 0.5204
Epoch 70, train_loss: 0.1242, val_loss: 0.1392, r_value: 0.5185
Epoch 80, train_loss: 0.1214, val_loss: 0.1404, r_value: 0.5188
Epoch 90, train_loss: 0.1185, val_loss: 0.1414, r_value: 0.5093
Epoch 100, train_loss: 0.1148, val_loss: 0.1421, r_value: 0.5116
Epoch 110, train_loss: 0.1116, val_loss: 0.1436, r_value: 0.4985
Epoch 120, train_loss: 0.1100, val_loss: 0.1500, r_value: 0.5082
Epoch 130, train_loss: 0.1038, val_loss: 0.1478, r_value: 0.4909
Epoch 140, train_loss: 0.0997, val_loss: 0.1514, r_value: 0.4817
Epoch 150, train_loss: 0.0954, val_loss: 0.1537, r_value: 0.4857
Epoch 160, train_loss: 0.0929, val_loss: 0.1577, r_value: 0.4648
Epoch 170, train_loss: 0.0886, val_loss: 0.1575, r_value: 0.4752
Epoch 180, train_loss: 0.0845, val_loss: 0.1602, r_value: 0.4591
Epoch 190, train_loss: 0.0839, val_loss: 0.1662, r_value: 0.4583

hid_dim: 512, lr: 0.0001
Deleting previous model
Epoch 0, train_loss: 0.1847, val_loss: 0.1811, r_value: 0.4059
Epoch 10, train_loss: 0.1459, val_loss: 0.1496, r_value: 0.4648
Epoch 20, train_loss: 0.1416, val_loss: 0.1457, r_value: 0.4846
Epoch 30, train_loss: 0.1385, val_loss: 0.1429, r_value: 0.4982
Epoch 40, train_loss: 0.1360, val_loss: 0.1416, r_value: 0.5072
Epoch 50, train_loss: 0.1348, val_loss: 0.1408, r_value: 0.5113
Epoch 60, train_loss: 0.1337, val_loss: 0.1398, r_value: 0.5141
Epoch 70, train_loss: 0.1323, val_loss: 0.1393, r_value: 0.5156
Epoch 80, train_loss: 0.1313, val_loss: 0.1395, r_value: 0.5179
Epoch 90, train_loss: 0.1306, val_loss: 0.1388, r_value: 0.5192
Epoch 100, train_loss: 0.1306, val_loss: 0.1392, r_value: 0.5183
Epoch 110, train_loss: 0.1295, val_loss: 0.1391, r_value: 0.5197
Epoch 120, train_loss: 0.1283, val_loss: 0.1385, r_value: 0.5213
Epoch 130, train_loss: 0.1281, val_loss: 0.1386, r_value: 0.5210
Epoch 140, train_loss: 0.1270, val_loss: 0.1391, r_value: 0.5202
Epoch 150, train_loss: 0.1261, val_loss: 0.1388, r_value: 0.5210
Epoch 160, train_loss: 0.1254, val_loss: 0.1391, r_value: 0.5204
Epoch 170, train_loss: 0.1247, val_loss: 0.1389, r_value: 0.5193
Epoch 180, train_loss: 0.1259, val_loss: 0.1405, r_value: 0.5195
Epoch 190, train_loss: 0.1237, val_loss: 0.1395, r_value: 0.5177

Let’s try the sklearn MLP implementation

sklearn also includes a class for neural network, which is a useful way to train a simple MLP quickly

# Let's try the sklearn MLP implementation
from sklearn.neural_network import MLPRegressor
regr = MLPRegressor(random_state=1, max_iter=1000).fit(X_train, y_train)
print(regr)

MLPRegressor(max_iter=1000, random_state=1)

y_pred = regr.predict(X_test)
slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)

fig,ax=plt.subplots(figsize=(5,5))
ax.scatter(y_pred, y_test.cpu())
ax.set_xlabel('Prediction')
ax.set_ylabel('True')
ax.set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

Text(0.5, 1.0, 'slope: 0.9888, r_value: 0.5085')

regr = MLPRegressor(hidden_layer_sizes=(256,256,256),random_state=1, max_iter=1000).fit(X_train, y_train)

y_pred = regr.predict(X_test)
slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)

fig,ax=plt.subplots(figsize=(5,5))
ax.scatter(y_pred, y_test.cpu())
ax.set_xlabel('Prediction')
ax.set_ylabel('True')
ax.set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))

Text(0.5, 1.0, 'slope: 0.3976, r_value: 0.3469')
